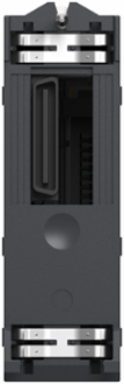

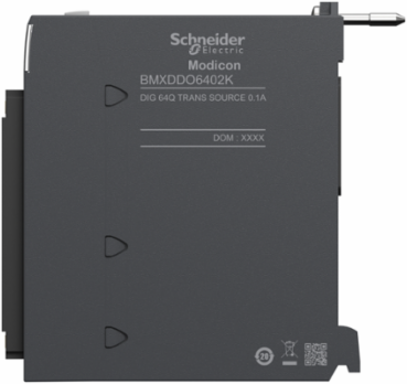

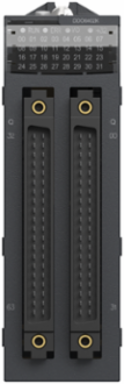

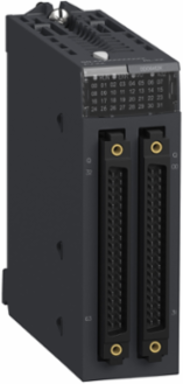

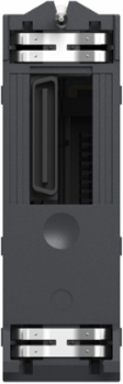

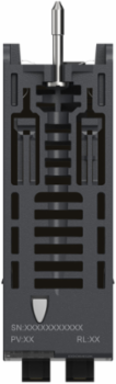

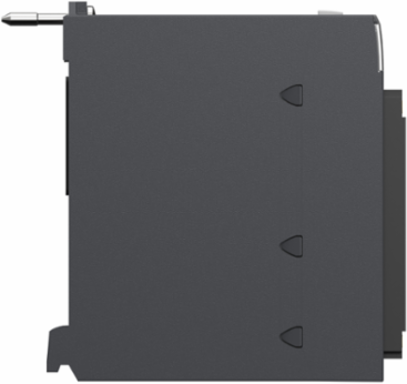

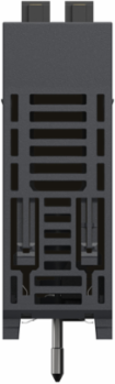

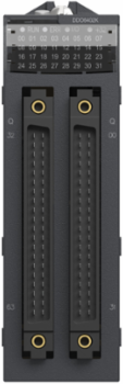

Schneider Electric BMXDDO6402K Modicon X80 Discrete Output Module 64 Outputs 24V DC Positive

  • MPN: BMXDDO6402K
  • PPN: SCH-BMXDDO6402K
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1808.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 64 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a typical current consumption of 79mA at 3.3V DC and an output current of 0.5A. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 159924 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, United States

    Complementary Attributes

    Maximum Current Per Module6.4 A
    Maximum Overload Time15 ms

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Dielectric Strength1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic, 500 V DC 1 minute, between group of channels
    Load Impedance Ohmic>= 220 Ohm, >= 220 Ohm
    Voltage Detection Threshold< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3566592727
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 25.6817090909
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Current Per Channel0.125 A
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Software Versionv5.9.4
    Switching Frequency0.5/LI² Hz
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.1
    Take-backNo
    Water Use (M3 Eq) Manufacturing [A1-a3]71207.6
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    Protection Typeexternal fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
    Carbon Footprint Of The Distribution Phase [A4]0.0262834909, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0535220364, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 27.1406748603
    Local Publishable Date2026-04-04
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Mtbf Reliability150000 H
    Product Or Component Typediscrete output module
    Range Of ProductModicon X80
    Reverse Polarity Protectionreverse mounted diode
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint53 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Package Weight(Lbs)180.000 g
    Warranty (In Months)18
    Customs Code8538908180

    Environment Attributes Main

    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint53.2588487512
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typediscrete output module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001419
    ETIM 9EC001419

    Output Attributes

    Discrete Output Logicpositive
    Response Time On Output1.2 ms
    Paralleling Of Outputsyes : 3 maximum

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
