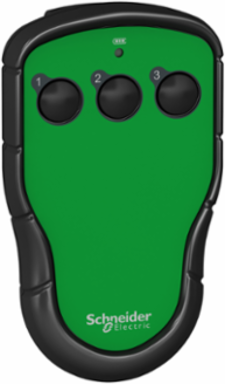

Schneider Electric ZART03 Harmony Pocket Remote Control, 3 Push Buttons, IP67, 66 mm Width

MPN: ZART03
PPN: SCH-ZART03
UNSPSC: 52161525

$288.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This remote control (Transmitter) with display is designed as a transmitter for wireless remote control system It has 3 single step push-buttons and can operate at a distance of 50m It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP67, making it ideal for operation in harsh (heavy) environments It is compatible with base station ZARB18W and ZARB18H

Features

Provide complete innovative crane operator control solutions to help improve machine and crane operator efficiency
Simple modular design with great efficiency helps to reduce installation and maintenance downtime
Unique identification code on the base station allows consistent and stable connection with the remote control system
Suitable for installation in harsh environment or outdoor applications due to IP66 protection rating
Wide range of operating temperatures from -20°C to 55°C allows versatility in usage of product

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Depth	37.5 mm

Weight	175 g

Communications & Management Attributes

Communication Network Type	wireless

Complementary Attributes

Maximum Sensing Distance	300 m in free field

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Autonomy	> 100 h with alkaline batteries, > 100 h with alkaline batteries> 100 h with alkaline batteries, > 100 h with alkaline batteries
Carbon Footprint Of The Distribution Phase A4	0.0228841207, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0466988189, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312040EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1415
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Control Button Type	3 single step push-button
Display Type	1 LED
Material	push-button cover silicone rubberenclosure ABS + PET
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony Pocket Remote
Returnability	Yes
Sustainable Packaging	Yes
Transmission Frequency	2.4 GHz
Database Version	2022-01
Height Nominal	114 mm
Certificate Agency	CE
Customs Code	8526925000
Functional Unit Description	The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Radio Agreement	IC, FCC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.1184786745
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.837007874
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	ZART
Function Available	power switch
Operating Distance	50 m
Product Or Component Type	hand-held remote control
Response Time	< 500 ms< 500 ms
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	66 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-20-55 °C, -20-55 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	6.0250694882
Environmental Disclosure	ENVPEP2312040EN
Ip Degree Of Protection	IP67
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Storage Altitude	0-3000 m
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312040EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	0-95 % -20-60 °C operating
Pep Code	ENVPEP2312040EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
