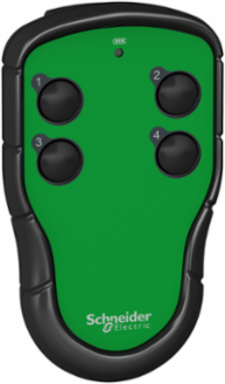

Schneider Electric ZART04 Harmony Pocket Remote Control, 4 Single-Step Push Buttons, IP67 Rating
- MPN: ZART04
- PPN: SCH-ZART04
CAD
$324.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This remote control (Transmitter) with display is designed as a transmitter for wireless remote control system It has 4 single step push-buttons and can operate at a distance of 50m It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP67, making it ideal for operation in harsh (heavy) environments It is compatible with base station ZARB18W and ZARB18H
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States

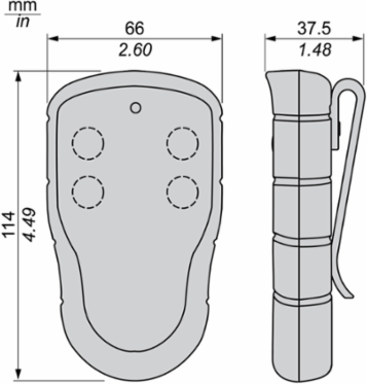

Depth37.5 mm
Communications & Management Attributes
- Communication Network Type
- wireless
Complementary Attributes
- Maximum Sensing Distance
- 300 m in free field
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Autonomy
- > 100 h with alkaline batteries, > 100 h with alkaline batteries> 100 h with alkaline batteries, > 100 h with alkaline batteries
- Radio Agreement
- IC, FCC
- Local Publishable Date
- 2026-03-26
- Future Imap
- 109.12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312040EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Control Button Type
- 4 single step push-button
- Display Type
- 1 LED
- Operating Distance
- 50 m
- Product Or Component Type
- hand-held remote control
- Response Time
- < 500 ms< 500 ms
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 114 mm
- Certificate Agency
- CE
- Package Weight(Lbs)
- 175.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Materialpush-button cover silicone rubber, enclosure ABS + PET
Local Data StatusPublishable
Return IndicatorY
Future Msrp141.27
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameZART
Function Availablepower switch
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Pocket Remote
ReturnabilityYes
Transmission Frequency2.4 GHz
Pep CodeENVPEP2312040EN
Width Nominal66 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2312040EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % -20-60 °C operating
- Pep Code
- ENVPEP2312040EN
Ambient Air Temperature For Storage-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2312040EN
Ip Degree Of ProtectionIP67
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
General Attributes
- Product Or Component Type
- hand-held remote control
Range Of ProductHarmony Pocket Remote
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Batteries & Runtime Attributes
- Battery Type
- 2 AAA/LR3 alkaline
