Schneider Electric ZARB05WSP Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC

Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
Base station, Harmony pocket remote, 5 relays output, pre-wired, 1.5m cable, 12...24V DC
  • MPN: ZARB05WSP
  • PPN: SCH-ZARB05WSP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$719.00/ EA

Description

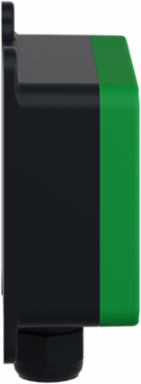

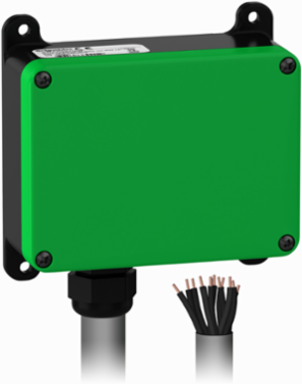

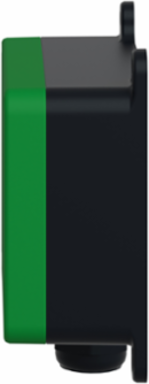

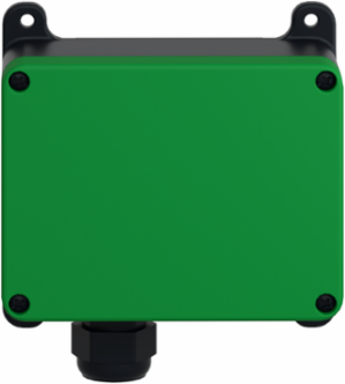

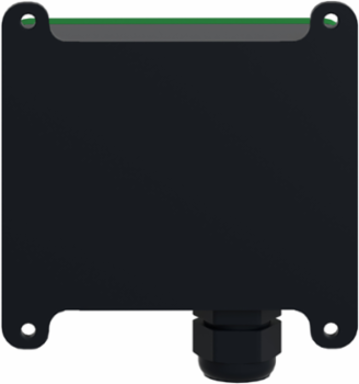

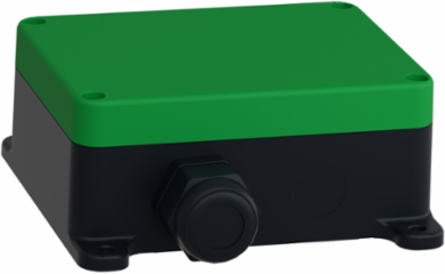

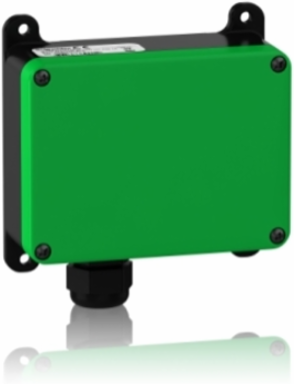

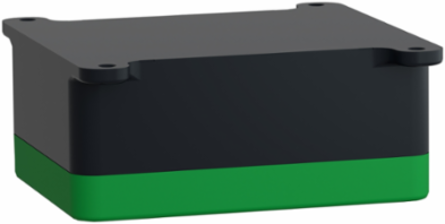

This green base station (Receiver) is designed as receiver for wireless remote control system It has 5 relay outputs with 2 safety relays and has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments

Specifications

Complementary

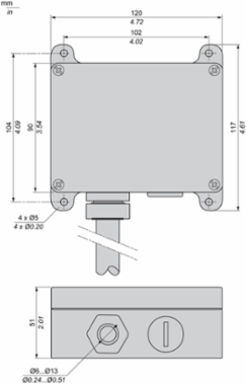

Height
117 mm
Maximum Switching Current
10 A AC
Fixing Mode
4 holes
Mechanical Durability
10000000 cycles
Cable Entry
cable pre-wired
Number Of Relays
5
Depth
51 mm
Safety Outputs
2 NC relay outputs
Material
ABS + PC
Communication Network Type
wireless
[Us] Rated Supply Voltage12...24 V DC
Maximum Sensing Distance300 m in free field
Transmission Frequency2.4 GHz
Maximum Switching Voltage240 V AC +/- 20 %)
Provided Equipmentinternal antenna
Width120 mm
Relay Typemotion relay outputs 5 C/O || auxiliary relay outputs
Electrical Durability100000 cycles
Net Weight0.40 kg

Environment

Product Certifications
CE
Ambient Air Temperature For Operation
-20-55 °C
Radio Agreement
FCC || IC
Relative Humidity0-97 %
Ambient Air Temperature For Storage-40-70 °C
Ip Degree Of ProtectionIP66

Specifications

Range Of Product
Harmony Pocket Remote
Device Short Name
ZARB
Product Or Component Typebase station

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
