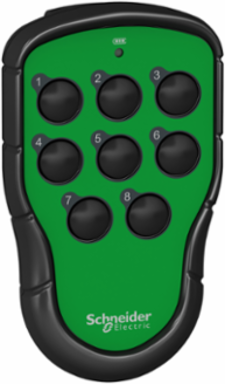

Schneider Electric ZART08 Harmony Pocket Remote Control, 8 Push Buttons, IP67, 50m Range

MPN: ZART08
PPN: SCH-ZART08
UNSPSC: 52161525

$415.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This remote control (Transmitter) with display is designed as a transmitter for wireless remote control system It has 8 single step push-buttons and can operate at a distance of 50m It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP67, making it ideal for operation in harsh (heavy) environments It is compatible with base station ZARB18W and ZARB18H High performance International standards & certifications (IP65, NEMA, UL/CSA, CE, EAC)

Features

Provide complete innovative crane operator control solutions to help improve machine and crane operator efficiency
Simple modular design with great efficiency helps to reduce installation and maintenance downtime
Wireless transmission allow remote control to transmit steady signal, commands and information
Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

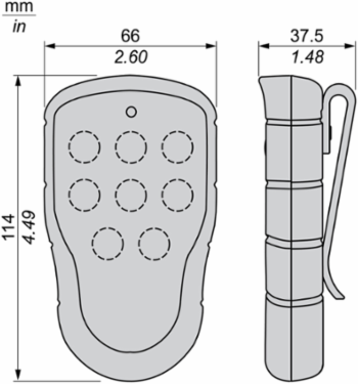

Depth	37.5 mm

Communications & Management Attributes

Communication Network Type	wireless

Complementary Attributes

Maximum Sensing Distance	300 m in free field

Important Information Attributes

Autonomy	> 100 h with alkaline batteries, > 100 h with alkaline batteries> 100 h with alkaline batteries, > 100 h with alkaline batteries
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Product Kit Identifier	N
Device Short Name	ZART
Function Available	power switch
Operating Distance	50 m
Product Or Component Type	hand-held remote control
Response Time	< 500 ms< 500 ms
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	66 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Radio Agreement	IC, FCC
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312040EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1415
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Control Button Type	8 single step push-button
Display Type	1 LED
Material	push-button cover silicone rubberenclosure ABS + PET
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Pocket Remote
Returnability	Yes
Transmission Frequency	2.4 GHz
Height Nominal	114 mm
Certificate Agency	CE
Customs Code	8526925000

Environment Attributes Main

Ambient Air Temperature For Operation	-20-55 °C, -20-55 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2312040EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % -20-60 °C operating
Pep Code	ENVPEP2312040EN

Ambient Air Temperature For Storage	-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312040EN
Ip Degree Of Protection	IP67
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Storage Altitude	0-3000 m
