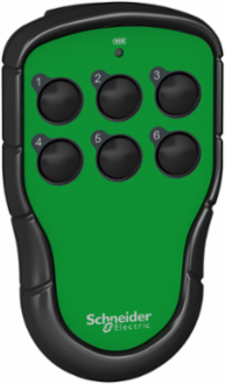

Schneider Electric ZART06 Harmony Pocket Remote Control, 6 Push Buttons, IP67, 50m Range
- MPN: ZART06
- PPN: SCH-ZART06
CAD
$344.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This remote control (Transmitter) with display is designed as a transmitter for wireless remote control system It has 6 single step push-buttons and can operate at a distance of 50m It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP67, making it ideal for operation in harsh (heavy) environments It is compatible with base station ZARB18W and ZARB18H High performance International standards & certifications (IP65, NEMA, UL/CSA, CE, EAC)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France

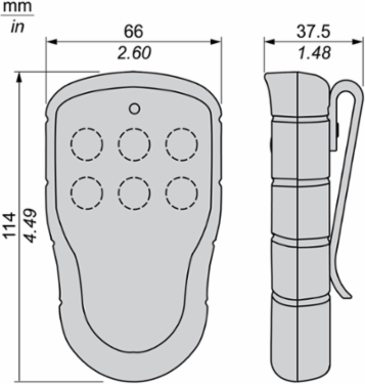

Depth37.5 mm
Communications & Management Attributes
- Communication Network Type
- wireless
Complementary Attributes
- Maximum Sensing Distance
- 300 m in free field
Important Information Attributes
- Autonomy
- > 100 h with alkaline batteries, > 100 h with alkaline batteries> 100 h with alkaline batteries, > 100 h with alkaline batteries
- Radio Agreement
- IC, FCC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1211867585
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.9704251969
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 150.69
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- ZART
- Function Available
- power switch
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Pocket Remote
- Returnability
- Yes
- Sustainable Packaging
- No
- Transmission Frequency
- 2.4 GHz
- Pep Code
- ENVPEP2312040EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Width Nominal
- 66 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Materialpush-button cover silicone rubber, enclosure ABS + PET
Carbon Footprint Of The Distribution Phase [A4]0.0234071864, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0477662205, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap116.4
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312040EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1415
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Control Button Type6 single step push-button
Display Type1 LED
Operating Distance50 m
Product Or Component Typehand-held remote control
Response Time< 500 ms< 500 ms
Software Versionv5.9.4
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Height Nominal114 mm
Certificate AgencyCE
Package Weight(Lbs)179.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6.1627853622
- Environmental Disclosure
- ENVPEP2312040EN
- Ip Degree Of Protection
- IP67
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % -20-60 °C operating
Pep CodeENVPEP2312040EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- hand-held remote control
Range Of ProductHarmony Pocket Remote
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Batteries & Runtime Attributes
- Battery Type
- 2 AAA/LR3 alkaline
