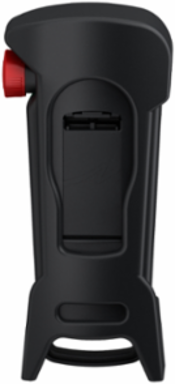

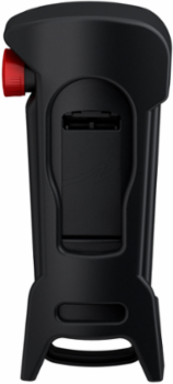

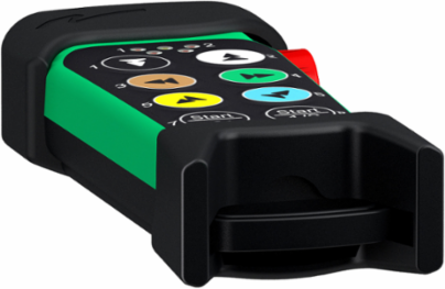

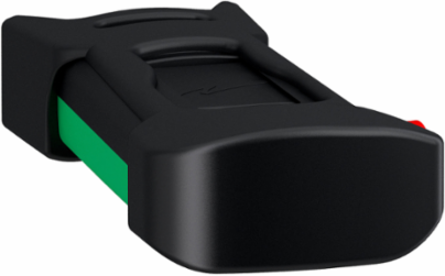

Schneider Electric ZART8LS Harmony eXLhoist Remote Control, 50m Range, IP65, 6 Push Buttons, 2 Aux Buttons
- MPN: ZART8LS
- PPN: SCH-ZART8LS
CAD
$668.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

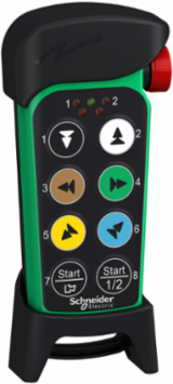

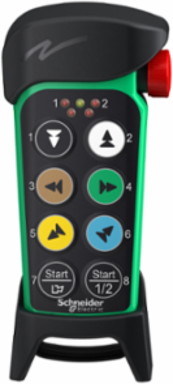

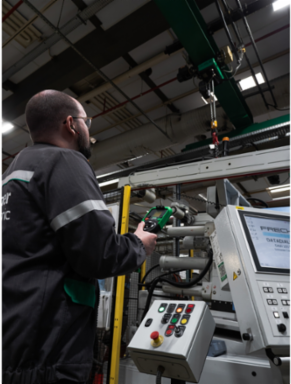

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has 5 LEDs with rechargeable battery. This remote control (transmitter) with LEDs is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth43 mm
Communications & Management Attributes
- Communication Network Type
- wireless Zigbee
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Autonomy
- 150 h Li-Ion (Lithium Ion), 100 h
- Control Button Type
- 6 configurable motion push-button, 2 configurable auxiliary push-button
- Radio Agreement
- IC, FCC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.055314189, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1128777165, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 246.96
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312040EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Device Short Name
- ZART
- Mechanical Durability
- 1000000 cycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony eXLhoist
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 15 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR

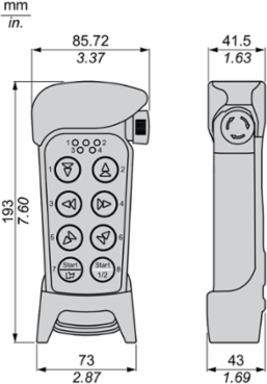

- Height Nominal
- 193 mm
- Certificate Agency
- CE
- Package Weight(Lbs)
- 423.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Charging Time10800 s, 0 s
Materialprotective cover EPDM rubber, push-button cover polyurethane, enclosure ABS + PC
Response Time< 500 ms simplex, < 500 ms simplex< 500 ms simplex, < 500 ms simplex
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2863798819
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 14.1088818898
Local Data StatusPublishable
Return IndicatorY
Future Msrp319.73
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Product Kit IdentifierN
Display Type5 LEDs
Operating Distance50 m
Product Or Component Typehand-held remote control
ReturnabilityYes
Sustainable PackagingYes
Transmission Frequency2.4 GHz
Pep CodeENVPEP2312040EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Width Nominal85 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 14.5634536772
- Environmental Disclosure
- ENVPEP2312040EN
- Ip Degree Of Protection
- IP65
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity0-95 % -20-60 °C operating
Pep CodeENVPEP2312040EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- hand-held remote control
Range Of ProductHarmony eXLhoist
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
