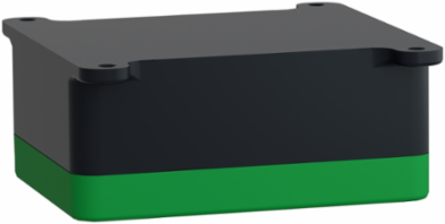

Schneider Electric ZARB11WSP Harmony Pocket Remote Base Station, 11 Relays, IP66, 12...24V DC
- MPN: ZARB11WSP
- PPN: SCH-ZARB11WSP
CAD
$1063.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

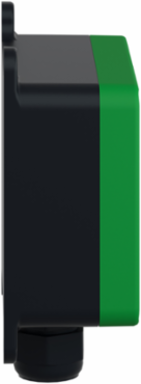

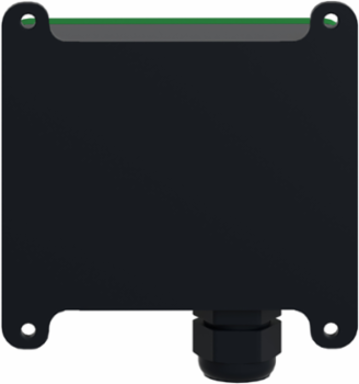

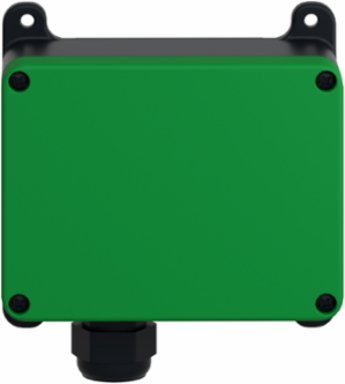

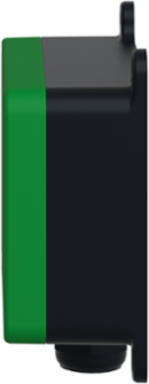

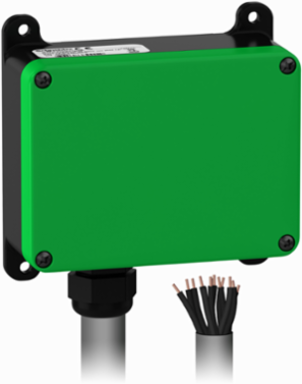

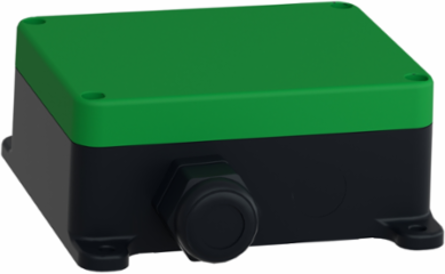

This green base station (Receiver) is designed as receiver for wireless remote control system It has 11 relay outputs with 2 safety relays and has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France

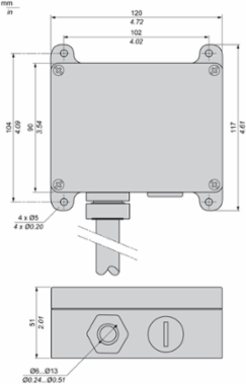

Depth51 mm
Communications & Management Attributes
- Communication Network Type
- wireless
Complementary Attributes
- Maximum Sensing Distance
- 300 m in free field
- Maximum Switching Voltage
- 240 V AC +/- 20 %)
Maximum Switching Current10 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Radio Agreement
- FCC, IC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1176897638, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2401653543, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 086 kg CO2 eq., 1086.2003527494
- Local Publishable Date
- 2026-01-12
- Future Imap
- 356.47
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312040EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- cable pre-wired
- Electrical Durability
- 100000 cycles
- Material
- ABS + PC
- Number Of Relays
- 11
- Product Or Component Type
- base station
- Range Of Product
- Harmony Pocket Remote
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 1 117 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 2102.4
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Width Nominal
- 120 mm
- [Us] Rated Supply Voltage
- 12...24 V DC
- Package Weight(Lbs)
- 995.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Relay Typemotion relay outputs 11 C/O, auxiliary relay outputs
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.6093188976
Carbon Footprint Of The Manufacturing Phase [A1 To A3]30 kg CO2 eq., 30.0188976378
Local Data StatusPublishable
Return IndicatorY
Future Msrp461.50
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameZARB
Fixing Mode4 holes
Mechanical Durability10000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentinternal antenna
ReturnabilityYes
Sustainable PackagingYes
Transmission Frequency2.4 GHz
Pep CodeENVPEP2312040EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Height Nominal117 mm
Certificate AgencyCE
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1117.186424403
- Environmental Disclosure
- ENVPEP2312040EN
- Ip Degree Of Protection
- IP66
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-97 %
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2312040EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base station
- Range Of Product
- Harmony Pocket Remote
Provided Equipmentinternal antenna
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
