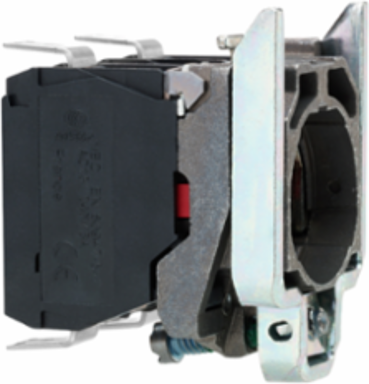

Schneider Electric ZB4BZ1013 Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector
Schneider Electric ZB4BZ1013 Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector
- MPN: ZB4BZ1013
- PPN: SCH-ZB4BZ1013
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$19.20/ EA
Description
Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector
Specifications
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || BV || CSA || UL || GL
- Ambient Air Temperature For Storage
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment
- TH
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Electrical Durability
- 10000000 cycles
- Terminals Description Iso N°1
- (13-14)NO
- Operating Force
- 2.3 N NO changing electrical state
- Operating Travel
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Mechanical Durability
- 5000000 cycles
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- Cad Overall Depth
- 37 mm
- Cad Overall Height
- 47 mm
Contacts Usagestandard contacts
[Ui] Rated Insulation Voltage250 V 3)EN 60947-1
Operating Torque0.05 N.m NO changing electrical state
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
Cad Overall Width30 mm
Net Weight0.053 kg
Specifications
- Connections - Terminals
- Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Product Or Component Type
- complete body/contact assembly
- Device Short Name
- ZB4
- Head Type
- standard
Contacts Type And Composition1 NO
Range Of ProductHarmony XB4
Contact Block Typesingle
Device Compositionbody || fixing collar
Fixing Collar Materialzamak
