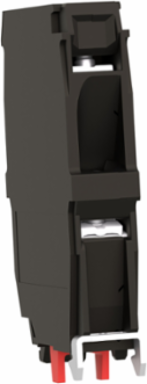

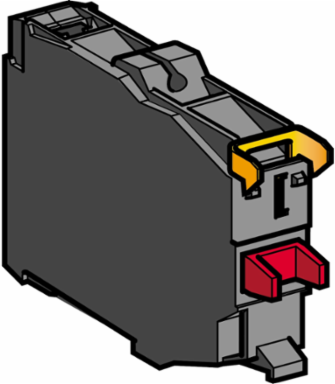

Schneider Electric ZBE204 Harmony XB4 Double Contact Block, 2 NC, IP20, Silver Alloy
- MPN: ZBE204
- PPN: SCH-ZBE204
- UNSPSC: 39121522
CAD
$34.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

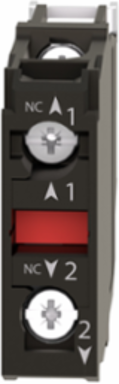

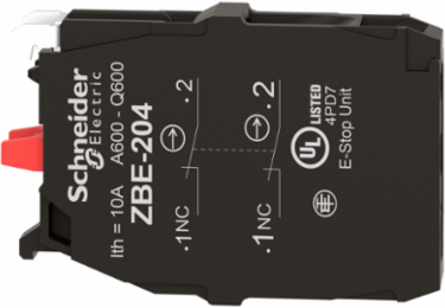

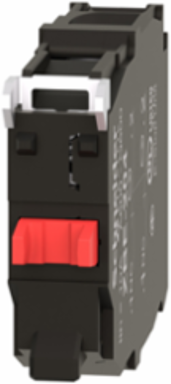

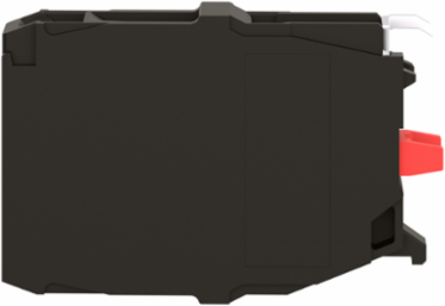

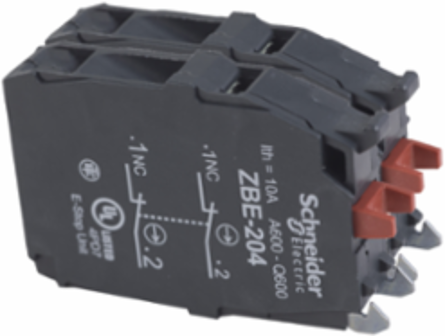

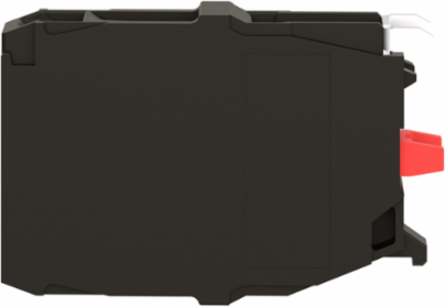

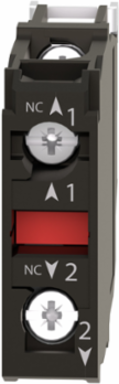

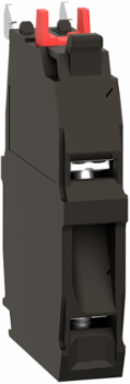

This Harmony ZB, double contact block uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This double contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- This model features a DPST-NC (Double Pole Single Throw, 2 Normally Closed) configuration utilizing slow-break, standard contacts made of a robust silver alloy (Ag/Ni). It provides two independent circuits that open simultaneously when the actuator is pressed, making it ideal for redundant safety signaling or dual-line isolation in industrial control circuits.
- Rated for high-performance control logic, it features an AC-15 operational rating of 6A at 120VAC (and up to 3A at 240VAC), along with a DC-13 rating of 0.55 A at 125VDC. It provides highly reliable low-current switching down to 1mA under clean environments, ensuring crisp, bounce-free communication with your PLCs or automation relays while carrying a 10A conventional free air thermal current.
- Designed with industrial operator safety in mind, the ZBE204 includes certified positive opening functionality conforming to EN/IEC 60947-5-1 Appendix K. This mechanical guarantee ensures that the normally closed contacts will be forced open during an actuation, even if a minor weld occurs, making it a dependable choice for critical interlocks and stopping circuits.
- Built to survive extreme manufacturing plant floors, this contact block operates efficiently across a wide temperature spectrum from -40 C to 70 C and features an IP20 finger-safe rating to protect against accidental shock. With a vibration resistance rating of 5 gn (2 to 500 Hz) and shock resistance up to 50 gn, it prevents intermittent contact chatter in heavy machinery environments.
- The integrated screw clamp terminals are highly versatile, accepting up to two 1.5 square millimeter wires with cable ends, or a single 0.22 square millimeter wire without an end. The versatile screw head design accommodates Cross Pozidriv No. 1, 4 mm flat slotted, or 5.5 mm flat slotted screwdrivers, giving installers maximum flexibility with standard tool belts and accelerating wiring times during high-volume panel assembly.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Weight | 17 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contacts Usage | standard contacts, standard contacts |
| Electrical Durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | CCC, CSA, BV, DNV, LROS (Lloyds register of shipping), UL, GOST |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.030873096164535846 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.1 kg CO2 eq., 0.1054113396331295 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 13 % |
| Compatibility Code | ZBE |
| Contact Operation | slow-break |
| Contacts Type And Composition | 2 NC |
| Mechanical Durability | 10000000 cycles |
| Operating Force | 3.4 N NC changing electrical state |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | contact block |
| Returnability | Yes |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.2 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Contacts Composition 6 | 2 NC |
| Data Source | extrapolated product |
| Customs Code | 8536509033 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Functional Unit Description | Pushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Composition Code | C2 3 )C4 2 ), C6 2 )C8 1 ), C10 2 ), C13 3 ), M2 2 ), M4 2 ), M8 2 ) |
| Range Of Product | Harmony XB4, Harmony XB5 |
| Connections Terminals 8 Connections Terminals | screw clamp terminals |
| Carbon Footprint Of The Distribution Phase A4 | 0.0022230405780989436, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.011973707615341854, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-06 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 23 % |
| Contact Block Type | double |
| Contacts Material | silver alloy (Ag/Ni) |
| Device Short Name | ZBE |
| Mounting Of Block | front mounting |
| Operating Travel | 1.5 mm NC changing electrical state)4.3 mm total travel) |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Sale Per Indivisible Quantity | 5 |
| Software Version | v6.2.5-6 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Connections Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Database Version | 2024-01 |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 13 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.15048118399110613 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2304014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2304014EN |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Range Of Product | Harmony XB4, Harmony XB5 |
|---|
| Product Or Component Type | contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|---|
| ETIM 10 | EC000041 |
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
Loading video…
