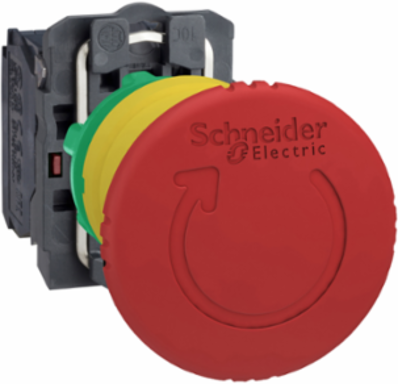

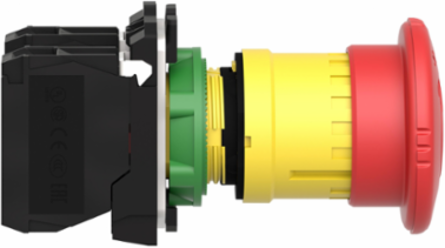

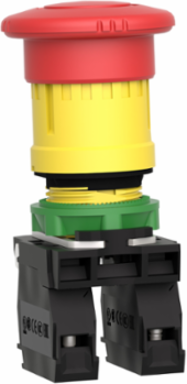

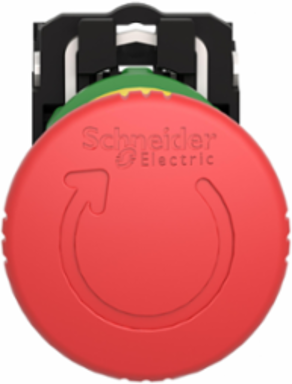

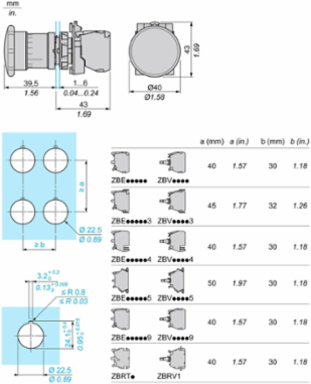

Schneider Electric XB5AS8445 Harmony XB5 Emergency Stop Push Button 40mm, IP66, Red Mushroom
- MPN: XB5AS8445
- PPN: SCH-XB5AS8445
CAD
$179.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- Custom-engineered to serve as a reliable Emergency Machine Stop (EMS) or Emergency Off (EMO), this device provides a vital safety interface for plant floor machinery.
- Featuring a prominent, high-visibility 40mm red mushroom head that is completely unmarked for universal industrial compliance, the device is easy for operators to hit in high-stress situations. Once the machinery has been safely serviced, resetting the device requires a simple, intentional turn-to-release twist, popping the actuator smoothly back out to its standard position.
- Belonging to the premium Harmony XB5 product family, this complete assembly is optimized for installation into any standard 22.5 mm cutout. It includes the non-illuminated red operator, a rugged dark gray plastic bezel, a mounting collar, and the pre-installed contact block stack, eliminating the need to spec out individual sub-components or adapter rings.

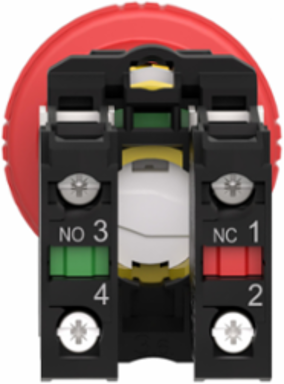

- The switch is equipped with a versatile 1 NO (Normally Open) + 1 NC (Normally Closed) contact arrangement featuring slow-break silver alloy contacts. Carrying an operational current rating of up to 6 A at 120 V AC (or 3 A at 240 V AC) conforming to standard A600/AC-15 utilization categories, the NC contact directly drops out safety contactors or master control relays while the NO contact concurrently flags a PLC input or indicator beacon.
- Engineered for demanding environments, this plastic-bezel device provides optimal double electrical insulation and superior resistance to harsh chemical agents and solvents. It carries exceptional IP66, IP67, IP69, and IP69K environmental protection alongside NEMA 4X and NEMA 13 ratings, ensuring total dust sealing and the ability to withstand high-pressure water washdowns.
