Schneider Electric XB5AS8444 Emergency Stop Button, 40mm Red Mushroom, IP66/IP67, 1 Million Cycles
- MPN: XB5AS8444
- PPN: SCH-XB5AS8444
CAD
$179.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

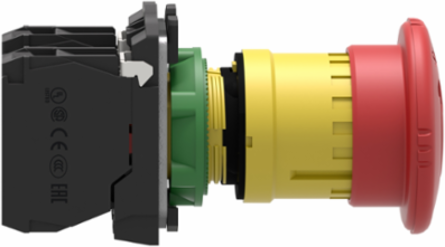

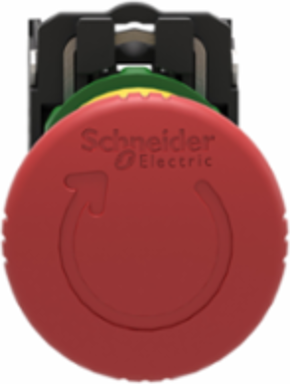

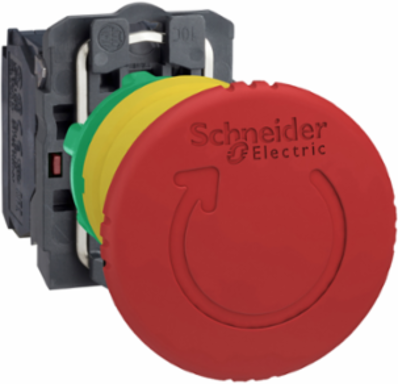

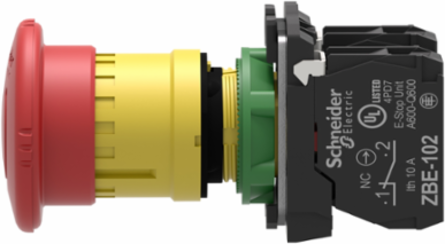

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- The Schneider Electric Canada XB5AS8444 features a standard 22 mm mounting diameter and a prominent 40 mm red mushroom head profile, allowing it to drop directly into existing industrial cutouts without panel modification. This ensures a drop-in replacement or streamlined OEM build, giving operators a highly visible, unmistakable emergency off switch that can be quickly slapped or pressed in high-stress situations.

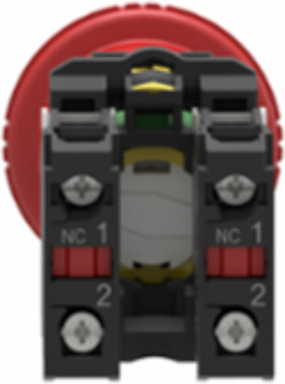

- Out of the box, this emergency stop button is equipped with a 2 NC (Normally Closed) slow-break contact configuration, which is the baseline requirement for redundant safety monitoring loops. The silver alloy (Ag/Ni) contacts provide highly reliable conductivity and electrical durability up to 1,000,000 cycles, ensuring your safety PLC or control circuit receives immediate, clean interruption when an emergency shutdown is triggered.
- Engineered with an advanced trigger action and mechanical latching system, this emergency stop switch cannot be accidentally reset by vibration or a light tug. It fully satisfies the positive opening requirements of IEC 60947-5-1 Appendix K and preventing premature machinery restarts before the workplace is safe.
- Featuring elite IP66, IP67, IP69, and IP69K ratings alongside NEMA 4X and NEMA 13 enclosure ratings, this plastic e-stop button is completely dust-tight and handles high-pressure, high-temperature washdowns (up to 7,000,000 Pa at 55 C). It completely eliminates the risk of internal corrosion or electrical shorts in demanding food processing facilities, wastewater treatment installations, and heavily hosed industrial plants.
- This industrial control component carries full UL Listing, CSA certification, and prestigious marine approvals from DNV and Lloyd's Register of Shipping, making it safe for immediate deployment anywhere in Canada or international markets. Built to meet rigorous safety criteria including IEC 60204-1, ISO 13850, and UL 508, it simplifies your equipment safety audits and guarantees your control panel stands up to strict workplace inspection codes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Depth82 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Usage
- standard contacts, standard contacts
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Reset
- turn to release, turn to release
- Certificate Agency
- CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
- Terminals Description Iso N°1
- (11-12)NC, (11-12)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.13243189737092176, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.604977035159962
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 13 %
- Compatibility Code
- XB5
- Contacts Material
- silver alloy (Ag/Ni)
- Device Short Name
- XB5
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- emergency switching off push-button
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 0.8 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Contacts Composition 6
- 2 NC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; APAC
- Recyclability Potential In %
- 21
- Width Nominal
- 40 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 66.000 g
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.319
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 0.2466
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 0.2466
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 0
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]0.009807491289198606, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.026160912258473234
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.060358
Local Publishable Date2026-03-26
Stocking FlagN
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content22 %
Bezel Materialdark grey plastic
Contact Operationslow-break
Contacts Type And Composition2 NC
Fixing Collar Materialplastic
Mechanical Durability300000 cycles
Operating Travel1.5 mm NC changing electrical state)4.3 mm total travel)
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatortrigger action and mechanical latching
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code"ENVPEP2308012EN"
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
Height Nominal43 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.5656
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.319
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 22 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.8337353360785557
- Environmental Disclosure
- "ENVPEP2308012EN"
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2308012EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency switching off push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
