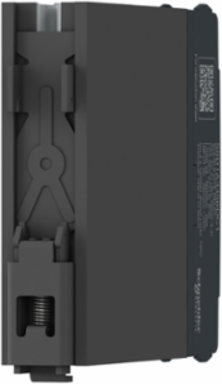

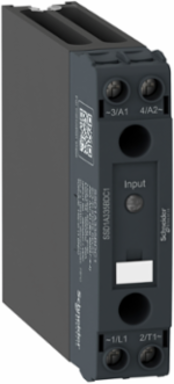

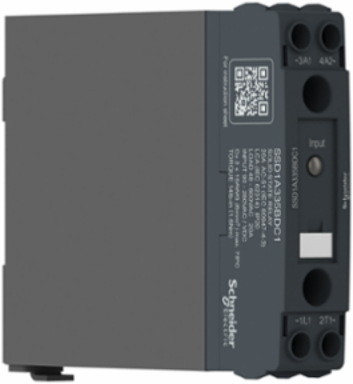

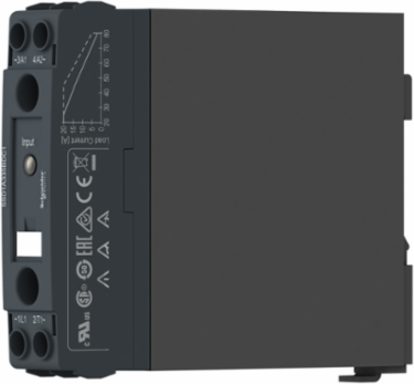

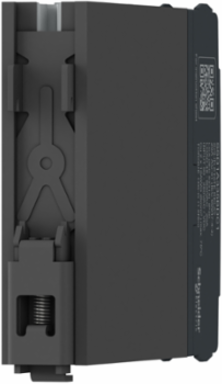

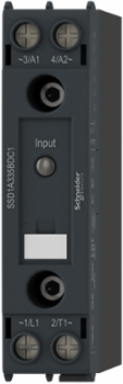

Schneider Electric SSD1A320BDC1 Harmony 20A Solid State Relay, 4...32V DC Input, 48...600V AC Output
- MPN: SSD1A320BDC1
- PPN: SCH-SSD1A320BDC1
CAD
$102.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

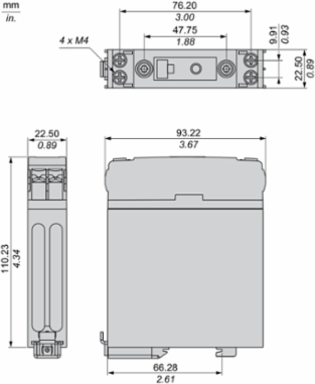

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth117.1 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
- Line Rated Current
- 20 A
- Maximum Switching Voltage
- 1 V DC turn-off
- Rated Current
- 20 A
Absolute Maximum Voltage1200 V
Maximum Leakage Current1 mA off-state
Minimum Switching Voltage4 V DC turn-on
Rated Dutyuninterrupted
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Coordination Type
- type 1, type 2
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Control Circuit Voltage
- 4...32 V
- [Uc] Control Circuit Voltage
- DC, 4...32 V
- Connections - Terminals
- screw terminals, clamping connection capacity:1...4 mm², 18 AWG...12 AWG for input, screw terminals, clamping connection capacity:1...6 mm², 18 AWG...10 AWG for output, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0441376943
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.8260283019
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- without test button
- Flame Retardance
- V-0 conforming to UL 94
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for control voltage
- Network Frequency
- 47...440 Hz
- Overvoltage Category
- III
- Power Factor
- 0.5 with maximum load
- Product Configuration Type
- relay configuration
- Range Of Product
- Harmony Solid State Relays
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-2730 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1508007_V3
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 75
- Width Nominal
- 22.5 mm
- Maximum I²T For Fusing
- 409 A².s for 10 ms375 A².s for 8.33 ms
- Package Weight(Lbs)
- 326.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 2665.7152
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 4094.0288
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 596.448
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 596.448
- Customs Code
- 8536410060
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output circuit, 4 kV AC for input or output to case
Motor Power Kw0.37 kW/0.5 hp at 120 V AC, 1.12 kW/1.5 hp at 240 V AC, 2.24 kW/3 hp at 480 V AC
Tightening Torque13...15 lb.in for load output, 1.5...1.7 N.m for control input, 13...15 lb.in for control input, 1.5...1.7 N.m for load output
Certificate AgencyIEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1
[Uimp] Rated Impulse Withstand Voltage6 kV for input/output circuit, 6 kV for input or output to case
Carbon Footprint Of The Distribution Phase [A4]0.0415452906, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0016556268, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]235 kg CO2 eq., 234.853376
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Contact FormForm 5 semiconductor output DOL contactor
Device Short NameSSD1
Inrush Current300 A at 60 Hz
Load Current0.2-20 A
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Number Of Channels1
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemodular DIN rail relay
ReturnabilityYes
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint239 kg CO2 eq.
X Product Configuration Typerelay configuration
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh479.3472
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal95.4 mm
Dv/Dt500 V/µs off-state at maximum rated voltage
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]10108.1216
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]875.6416
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4690.5984
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4094.0288
Water Pollution (M3) Operational Energy Use [B6]9691.0336
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 238.7667429136
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-100 °C, -40-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1508007_V3
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1508007_V3
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching
- Solid State Output Type
- zero voltage switching
Output Voltage48...600 V AC
Input Attributes
- Input Current Limits
- 10-15 mA
Overview Attributes
- Device Presentation
- complete product
