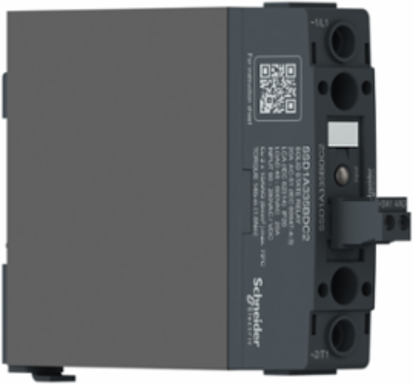

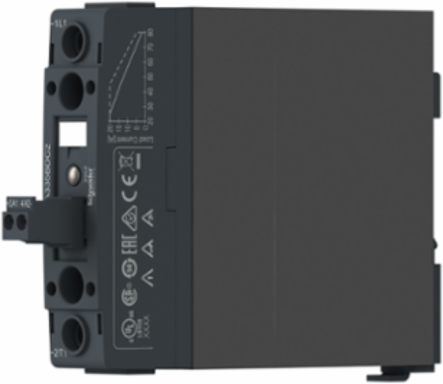

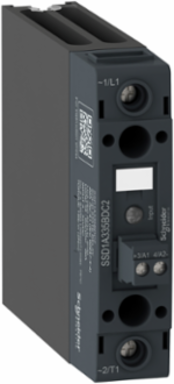

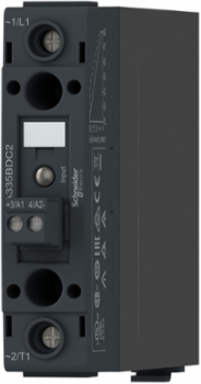

Schneider Electric SSD1A320BDC2 Harmony Solid State Relay 20A, 4-32V DC Input, 48-600V AC Output
- MPN: SSD1A320BDC2
- PPN: SCH-SSD1A320BDC2
CAD
$102.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

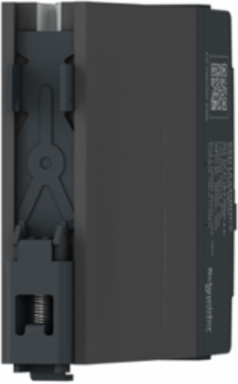

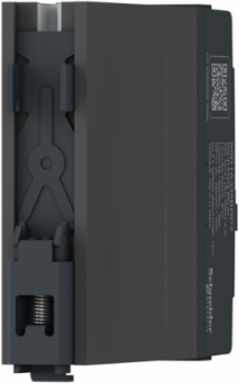

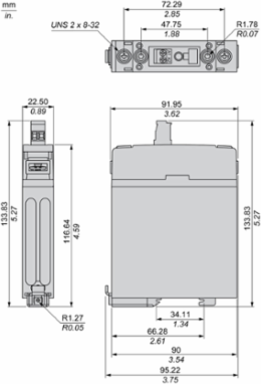

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with pluggable screw input contactor type configuration and Zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth134.7 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state, <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
- Line Rated Current
- 20 A
- Maximum Switching Voltage
- 1 V DC turn-off
- Rated Current
- 20 A
Absolute Maximum Voltage1200 V
Maximum Leakage Current1 mA off-state
Minimum Switching Voltage4 V DC turn-on
Rated Dutyuninterrupted
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Coordination Type
- type 1, type 2
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Control Circuit Voltage
- 4...32 V
- [Uc] Control Circuit Voltage
- DC, 4...32 V
- Connections - Terminals
- plug-in screw terminals, clamping connection capacity:0.08...3.30 mm², 28 AWG...12 AWG for inputtelescopic screw, clamping connection capacity:0.75...10 mm², 20 AWG...8 AWG for output, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.38237510632354427
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.8328440862833209
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- without test button
- Flame Retardance
- V-0 conforming to UL 94
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for control voltage
- Network Frequency
- 47...440 Hz
- Overvoltage Category
- III
- Power Factor
- 0.5 with maximum load
- Product Configuration Type
- contactor configuration with pluggable screw input
- Range Of Product
- Harmony Solid State Relays
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-2730 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2607026EN
- Pep Verification Date
- 2026-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Production mix; high voltage; 2022; China, CN
- Energy Model - Use [B6]
- Electricity mix; Production mix; low voltage; 2022; Global, GLO
- Recyclability Potential In %
- 96
- Width Nominal
- 22.5 mm
- Dv/Dt
- 500 V/µs off-state at maximum rated voltage
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410060
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output circuit, 4 kV AC for input or output to case
Motor Power Kw0.37 kW/0.5 hp at 120 V AC, 1.12 kW/1.5 hp at 240 V AC, 2.24 kW/3 hp at 480 V AC
Tightening Torque0.5 N.m for control input, 5 lb.in for control input2...2.2 N.m for load output, 18...20 lb.in for load output
Certificate AgencyIEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1
[Uimp] Rated Impulse Withstand Voltage6 kV for input/output circuit, 6 kV for input or output to case
Carbon Footprint Of The Distribution Phase [A4]0.05997429132578339, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.046302042072968036, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 2.445542466985405
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2607026EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Contact FormForm 5 semiconductor output DOL contactor
Device Short NameSSD1
Inrush Current300 A at 60 Hz
Load Current0.2-20 A
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Number Of Channels1
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemodular DIN rail relay
ReturnabilityYes
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint5 kg CO2 eq.
X Product Configuration Typecontactor configuration with pluggable screw input
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide reliable ON/OFF switching and control of AC and DC electrical loads in industrial applications for a reference service life of 10 years, operating at an average utilization rate of 20%, while ensuring safe, silent, and maintenance-free switching through semiconductor technology with no moving contacts.
Functional-unit Unitunit
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal94.6 mm
[Ui] Rated Insulation Voltage600 V
Maximum I²T For Fusing409 A².s for 10 ms375 A².s for 8.33 ms
Package Weight(Lbs)324 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C, -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 4.767037992991022
- Environmental Disclosure
- ENVPEP2607026EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2607026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-100 °C, -40-100 °C, -40-100 °C, -40-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2607026EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching
- Solid State Output Type
- zero voltage switching
Output Voltage48...600 V AC
Input Attributes
- Input Current Limits
- 10-15 mA
Overview Attributes
- Device Presentation
- complete product
