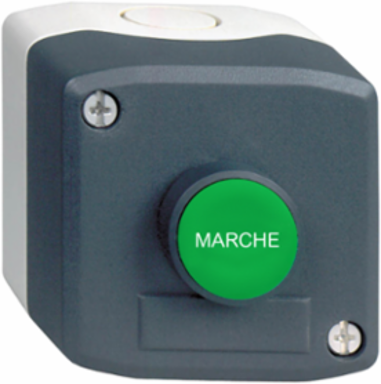

Schneider Electric XALD104 Harmony XALD Control Station, 1 Green Pushbutton, IP66/IP67/IP69K
- MPN: XALD104
- PPN: SCH-XALD104
CAD
$65.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
| Control Station Application | start function |
|---|---|
| Range Of Product | Harmony XALD |
| Control Station Composition | 1 flush push-button, green 1 NO MARCHE |
| Product Or Component Type | complete control station |
| Marking Location | marking on push-button |
| Colour Of Cover | dark grey RAL 7016) |
| Device Short Name | XALD |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
|---|---|
| Colour Of Base Of Enclosure | light grey RAL 7035) |
| Operators Description | green ''MARCHE'' 1 NO |
| Material | polycarbonate |
| Operator Profile | 1 flush push-button |
| Contact Operation | slow-break |
Complementary
| Operating Force | 3.8 N NO changing electrical state |
|---|---|
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Positive Opening | without |
| Cable Entry | 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Net Weight | 0.156 kg |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
|---|---|
| Contacts Material | silver alloy (Ag/Ni) |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Colour Of Marking | white marking when green, red or black caps || black marking when white caps |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Mechanical Durability | 10000000 cycles |
| Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
Environment
| Ik Degree Of Protection | IK03 conforming to EN 50102 |
|---|---|
| Standards | UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1 |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1806010EN |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
