Schneider Electric

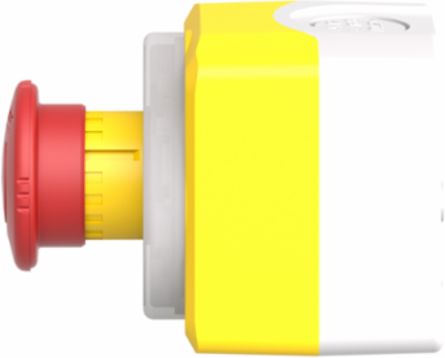

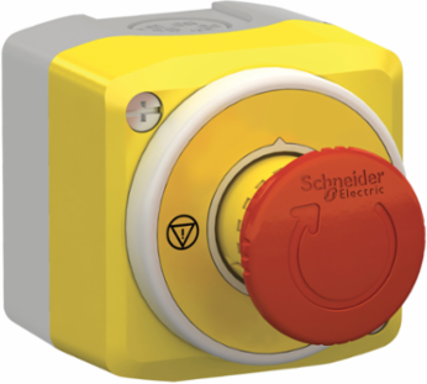

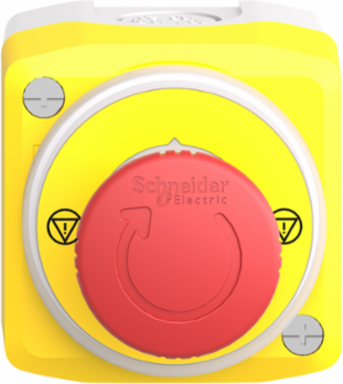

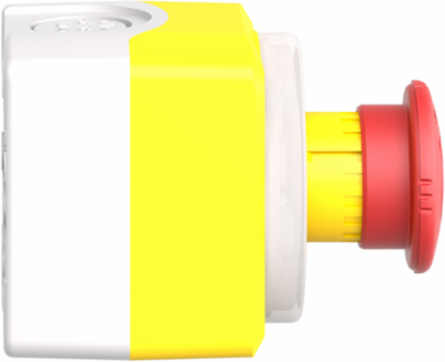

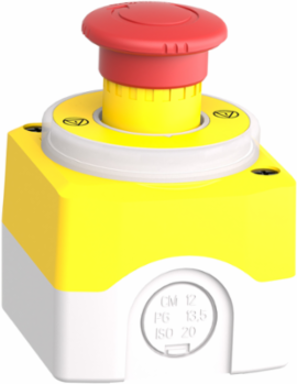

Schneider Electric XALK178W3B140E Emergency Stop Control Station, 40mm Push-Button, IP65

  • MPN: XALK178W3B140E
  • PPN: SCH-XALK178W3B140E
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $138.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia

    Physical Attributes

    Color Of Base Of Enclosure
    light grey RAL 7035)
    Housing Color
    yellow
    Color Of Coveryellowyellow RAL 1021)

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Entry

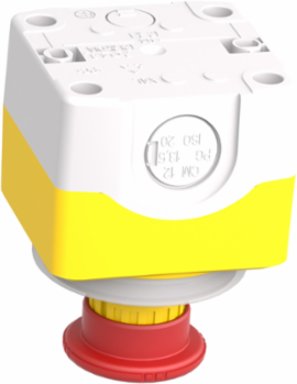

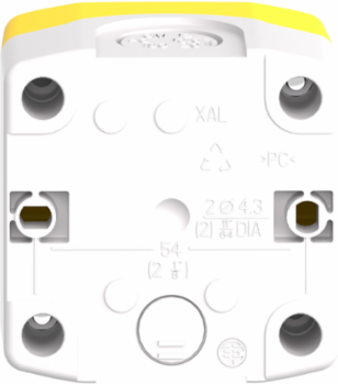

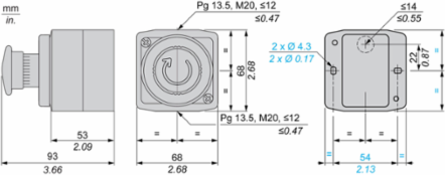

    1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate Agency
    UL Listed, CSA
    Carbon Footprint Of The Distribution Phase [A4]
    0.0241277164, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0011280166, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    0.4 kg CO2 eq., 0.3742624
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2506022EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    XALK
    Contacts Material
    silver alloy (Ag/Ni)
    Dc Control Voltage
    24-24 V
    Electrical Insulation Class
    class II IEC 61140
    Material
    polycarbonate
    Operating Force
    44 N
    Operator Profile
    1 mushroom head push-button
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Destination
    for XB5 Ø 22 mm control and signalling units
    Protective Treatment
    TH
    Reset
    turn to release
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Software Version
    EIME v5.8.1
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz
    24-24 V
    Number Of Command Positions
    1
    Number Of Contacts As Normally Open Contact
    1
    Color Of Cover
    yellowyellow RAL 1021)
    Pep Code
    ENVPEP2506022EN
    Pep Verification Date
    2018-09-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity mix; AC; <lt/> 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; <lt/> 1kV; EU-27
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Number Of Mushroom-shaped Push-buttons
    1
    Package Weight(Lbs)
    190.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Control Station Applicationemergency switching off function, emergency stop function
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0353107498
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2171188821
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Operationslow-break
    Control Station Composition1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC
    Device Short NameXALK
    Housing Materialplastic
    Mechanical Durability300000 cycles
    Operating Travel1.5 mm NC changing electrical state)4.3 mm total travel)
    Operators Descriptionred unmarked 1 NO + 1 NC
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALK
    Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    ReturnabilityYes
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint2 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz24-24 V
    Number Of Contacts As Normally Closed Contact1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Coloryellow
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    Functional-unit Unitunité (unit)
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %18
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Emergency Power Off (Epo)no
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509035

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-55 °C, -40-55 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653, IP66/IP67/IP69/IP69K
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2506022EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint1.651947765
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    complete control station
    Range Of ProductHarmony XALK

    ETIM

    ETIM 8
    EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
