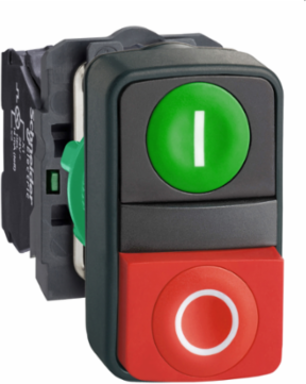

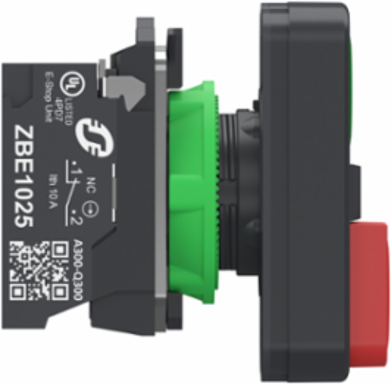

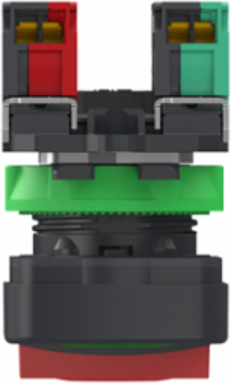

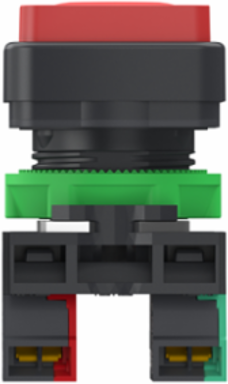

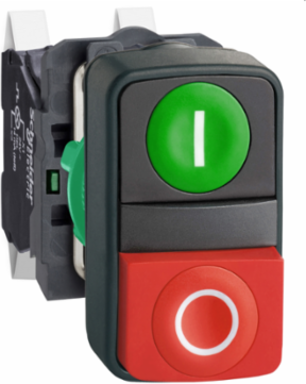

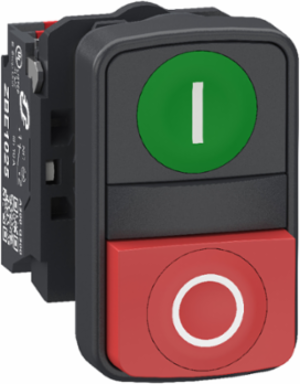

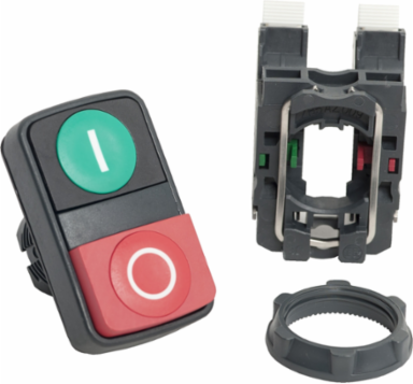

Schneider Electric XB5AL734155 Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in

Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
  • MPN: XB5AL734155
  • PPN: SCH-XB5AL734155
  • UNSPSC: 39122216

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$92.26/ EA

Description

This Harmony XB5 double-headed pushbutton provides a complete 2 button interface to your machines with a single panel cut-out. Its schematic is distinguishable thanks to clear colors and markings (white “I” on green background and white “0” on a red background), minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs and connected with push-in terminal connections. The XB5AL734155 pushbutton is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, featuring a slow break operation. This product is made from plastic, it weighs 45g. High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13) Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
  • Excellent mechanical connection with operator head
  • A large set of accessories to customize your panels
  • Tool-free installation enabled by push-in connections, ensuring effortless setup

Specifications

Physical Attributes

Cap Operator Or Lens Color
green, red
Color Of Markingwhite marking when green, red or black caps, black marking when white caps

Conformance Attributes

Product Certifications
EAC, IECEE CB Scheme, CCC, UL, CSA
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Cap Operator Or Lens Color
green, red
Customizable
no, 0
Operating Travel
1.217 mm NC changing electrical state), 2.05 mm NO changing electrical state), 4.3 mm total travel)
Shock Resistance
25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A4
0.0185073127, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0 kg CO2 eq., 0.0139743288
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0.1 kg CO2 eq., 0.059878169
Connections Terminals3
push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Local Data Status
Publishable
Legacy WEEE Scope
In
EOLI Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
CONTAINS_SVHC
ROHS EUR In Scope
No
ROHS EUR Full Compliance Status
Pro-active compliance (Product out of EU RoHS legal scope)
China ROHS In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Function Option Id
STANDARD
Bezel Material
dark grey plastic
Contact Operation
slow-break
Contacts Type And Composition
1 NO + 1 NC
Device Short Name
XB5
Head Type
standard

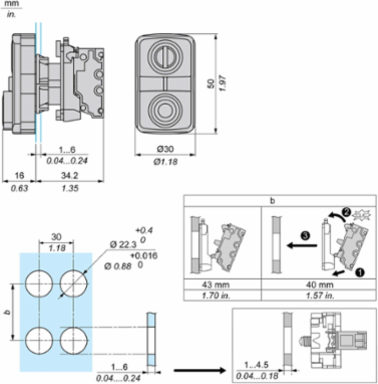

Mounting Diameter
22.5 mm
Overvoltage Category
class II conforming to IEC 60536
Positive Opening
with IEC 60947-5-1 appendix K
Product Or Component Type
double-headed push-button
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Head
rectangular
Sustainable Packaging
Yes
Type Of Operator
spring return
Ith Conventional Free Air Thermal Current2
10 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage2
4 kV IEC 60947-1
Medium Desc
Double headed push button, Harmony XB5, plastic, 22mm, 1 green marked I + 1 red projecting marked O, 1NO+1NC, push in
Product Kit Identifier
N
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional Unit Description
XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications. This pushbutton&amp;nbsp;power consumption is 0.002W with 71% active mode for 10 years, and it product&amp;nbsp;complies with IEC 60947-1 standards..
Energy Model Manufacturing A1 A3 2
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Ith Conventional Free Air Thermal Current5
10 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage5
4 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Color Of Markingwhite marking when green, red or black caps, black marking when white caps
Operating Force2.25 N NC changing electrical state, 2.45 N NO changing electrical state

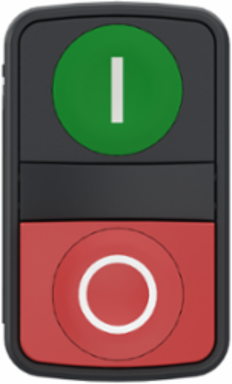

Operator Profilered projecting, O white), green flush, I white), 1 flush - 1 projecting push-buttons

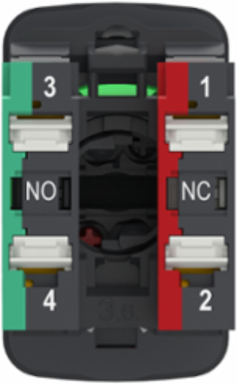

Terminals Description ISO N 1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
Ie Rated Operational Current26 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.0957780874, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.3946609563
Connections Terminalspush-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Ie Rated Operational Current56 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Mechanical Durability10000000 cycles
Operators Descriptiongreen ''I'' - red ''O''
Package Weight Lbs53.000 g
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2300 V 3)IEC 60947-1
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Stocking FlagN
Pep CodeENVPEP2303008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Global Commercial StatusCommercialised
Ui Rated Insulation Voltage5300 V 3)IEC 60947-1

Environment Attributes Main

Take Back
Nej, No
IP Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
ROHS Exemption Information
Yes
China ROHS Regulation
X
Carbon Footprint
0.5827988543
Ambient Air Temperature For Storage
-40-70 °C
Environmental Disclosure
ENVPEP2303008EN
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2303008EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2303008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
double-headed push-button
Range Of ProductHarmony XB5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Depth
51 mm

Overview Attributes

Device Presentation
complete product
