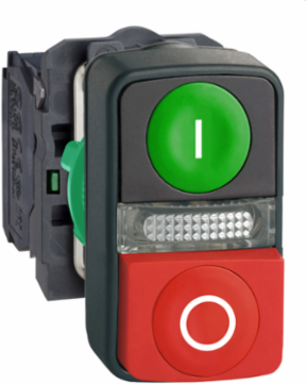

Schneider Electric XB5AW73731B5 Harmony XB5 Illuminated Push Button 22mm, 1 Green I + 1 Red O, IP66/IP69K

MPN: XB5AW73731B5
PPN: SCH-XB5AW73731B5
UNSPSC: 39122216

$103.18

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

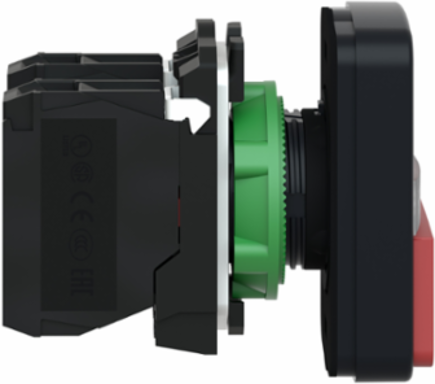

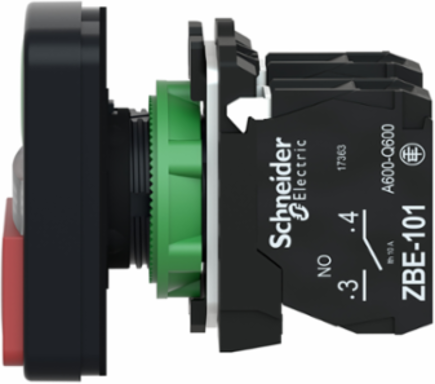

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	59 mm

Weight	66 g

Complementary Attributes

Ie Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ui Rated Insulation Voltage	600 V 3)IEC 60947-1

Us Rated Supply Voltage	24 V, 24 V AC/DC 50/60 Hz
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	no, 0
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Head	cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Connections Terminals	spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1, spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Cap/Operator Or Lens Colour	green, red
Carbon Footprint Of The Distribution Phase A4	0.019024705882352944, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.018294117647058825
Carbon Footprint Of The Use Phase B2 B3 B4 B6	10 kg CO2 eq., 10.458450704225354
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2404014EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	22 %
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Type And Composition	1 NO + 1 NC
Current Consumption	18 mA
Electromagnetic Emission	class B IEC 55011
Head Type	standard
Light Source	protected LED
Mounting Diameter	22 mm
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Overvoltage Category	class II conforming to IEC 61140
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB5
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Service Life	100000 year(s) at rated voltage and 25 °C
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	11 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Light Source Color	white
Database Version	2022-01
Height Nominal	50 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	19.0092
Pep End Of Validity Date Calculated	2029-06-09

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

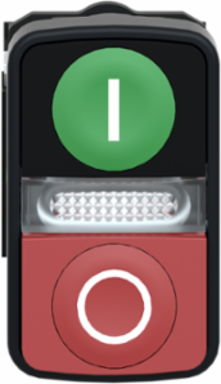

Operator Profile	green flush, I white), red projecting, O white), 1 flush - 1 projecting push-buttons - 1 central pilot light
Color Of Marking	black marking when white caps, white marking when green, red or black caps
Certificate Agency	CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV

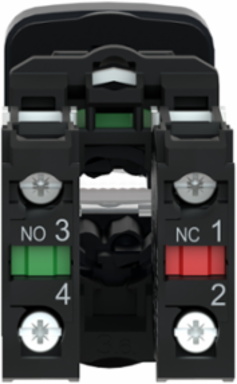

Terminals Description Iso N°1	(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0.15256470588235294, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.5 kg CO2 eq., 0.4600588235294118
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	13 %
Bezel Material	dark grey plastic
Compatibility Code	XB5
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Device Short Name	XB5
Fixing Collar Material	plastic
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability	1000000 cycles
Operating Force	3.5 N NC changing electrical state3.8 N NO changing electrical state
Operators Description	green ''I'' - red ''O''
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	illuminated double-headed push-button
Protective Treatment	TH
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Returnability	Yes
Shape Of Signaling Unit Head	rectangular
Signalling Type	steady
Supply Voltage Limits	19.2-30 V DC21.6-26.4 V AC
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage 20 Supply Voltage	24 V
Data Source	extrapolated product
Width Nominal	30 mm
Customs Code	8536509035
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	38

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP69 IEC 60529, IP69K
Take Back	No
China Rohs Regulation	X
Carbon Footprint	11.108393057166532
Environmental Disclosure	ENVPEP2404014EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-09
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	13 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2404014EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2404014EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
