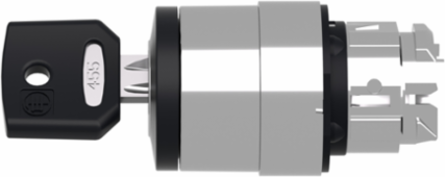

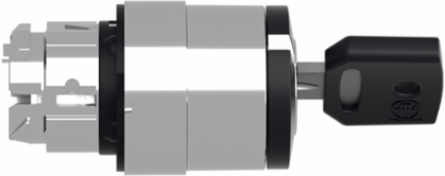

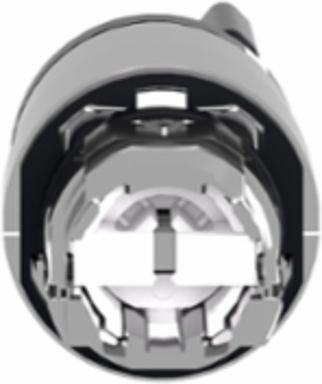

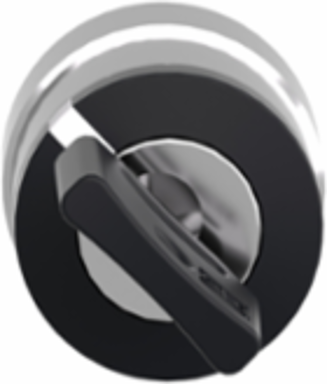

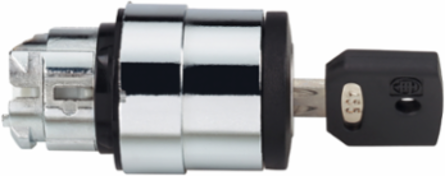

Schneider Electric ZB4BG2K Harmony XB4 Key Switch Selector Head, 22mm, Black, 2 Positions, IP66/IP67
- MPN: ZB4BG2K
- PPN: SCH-ZB4BG2K
CAD
$101.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This head for selector switch is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with black key operated knob. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It features 2 positions maintained, at 90°. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Product Compatibility
- 4 multi-chip
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- round
- Key Withdrawal Position
- left
- Bezel Material
- chromium plated metal
- Operator Position Information
- 2 positions 90°
- Device Short Name
- ZB4
Range Of ProductHarmony XB4
Product Or Component Typehead for key selector switch
Head Typestandard
Sale Per Indivisible Quantity1
Operator Profileblack key switch
Type Of Operatorstay put
Type Of Keylockspecial key
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Device Presentation
- basic element
- Mechanical Durability
- 1000000 cycles
- Cad Overall Depth
- 72 mm
Cad Overall Height29 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Cad Overall Width29 mm
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || BV || GL || UL listed || CSA
- Standards
- GB 14048.5 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
