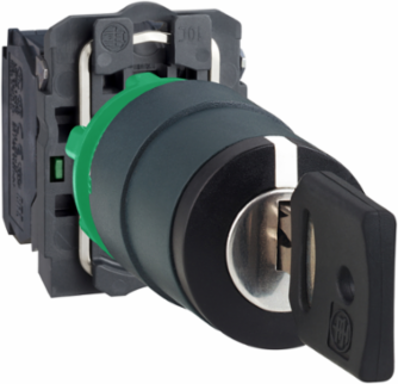

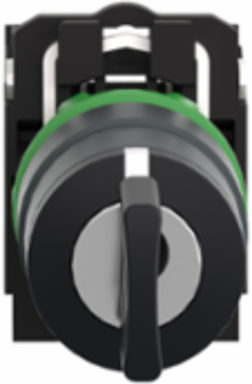

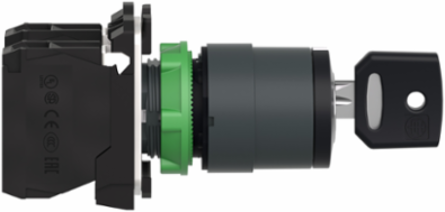

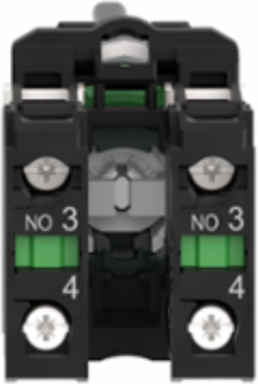

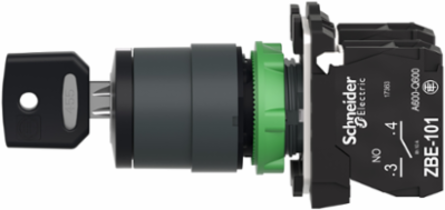

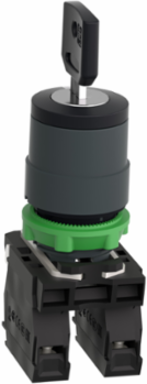

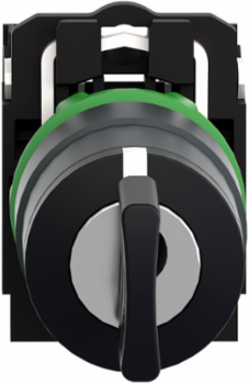

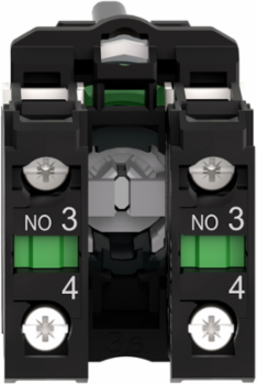

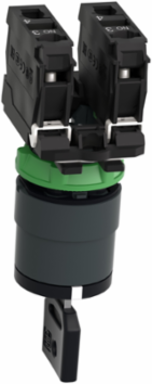

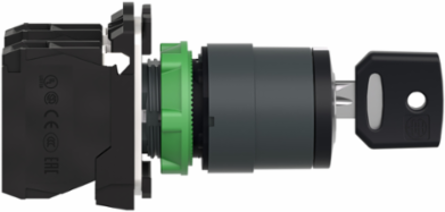

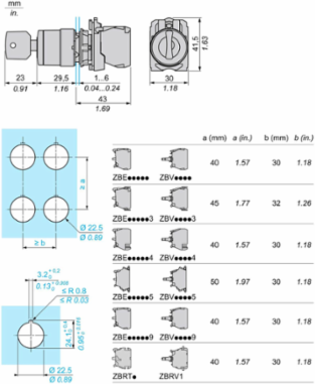

Schneider Electric XB5AG03 Harmony XB5 Key Switch Selector 22mm Plastic, 3 Positions, 2 NO

  • MPN: XB5AG03
  • PPN: SCH-XB5AG03

CAD

$135.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony XB5, modular black key selector switch (key no.455) has 3 positions, operates with a stay-put mechanism with key withdrawal on left, center and right position and uses screw-clamp terminals. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France, Mexico, United States
Depth96 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Bezel Material
dark grey plastic, dark grey plastic
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Key Withdrawal Position
in any position, in any position
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1
(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.13089, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.7 kg CO2 eq., 0.65634
Local Data Status
Publishable
Return Indicator
Y
Future Msrp
90.17
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Compatibility Code
XB5
Contacts Material
silver alloy (Ag/Ni)
Contacts Usage
standard contacts
Electrical Shock Protection Class
class II conforming to IEC 60536
Mechanical Durability
1000000 cycles
Operator Position Information
3 positions +/- 45°
Positive Opening
without
Product Or Component Type
selector switch
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity
1
Software Version
v5.9.4
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Total Lifecycle Carbon Footprint
1 kg CO2 eq.
Type Of Operator
stay put
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator 3 Type Of Operator
stay put
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
This switch's primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal
30 mm
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
[Us] Rated Supply Voltage
230...240 V
Short-circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)
92.000 g
Take-back
No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
11.059
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
5.5282
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
157.39
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
-4.8934
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
-5.6507
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
11.059
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
5.5282
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
11.263
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
5.5286
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
10.165
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
5.5282
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 0
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyCSA, DNV, LROS (Lloyds register of shipping), BV, UL
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.012614, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.014871
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.2 kg CO2 eq., 0.15828
Local Publishable Date2026-01-12
Future Imap69.65
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308009EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationslow-break
Contacts Type And Composition2 NO
Device Short NameXB5
Head Typestandard
Mounting Diameter22.5 mm
Operator Profileblack key switch
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Torque Value0.14 N.m NO changing electrical state
Type Of Keylockkey 455
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Contacts Composition2 NO
Pep CodeENVPEP2308009EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Height Nominal42 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Cap/Operator Or Lens Colourblack
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.9674
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-5.5179
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2.3377
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.762
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]2.2053
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.9674
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-5.5179
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.3754
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-5.6155
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.9674
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-5.5179

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP69, IP69K, IP66 IEC 60529, IP67
Take Back
No
China Rohs Regulation
X
Carbon Footprint
0.972995
Environmental Disclosure
ENVPEP2308009EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308009EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
selector switch
Range Of ProductHarmony XB5

ETIM

ETIM 8
