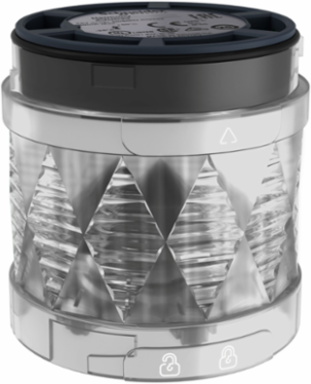

Schneider Electric XVUC29 Harmony XVU Modular Tower Light - LED, 60mm, Multi-Color, IP65, 24V AC/DC
- MPN: XVUC29
- PPN: SCH-XVUC29
CAD
$317.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This multi-color illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVU
- Light Source
- LED, multi-colour
- Component Name
- XVU
- Light Source Colour
- green || yellow || white || blue || amber || red
Mounting Diameter60 mm
Product Or Component Typemodular tower light
Beacon Or Indicator Bank Unit TypeLED unit
Device Applicationautomotive || packaging machine || machine tools
Complementary
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Current Consumption
- <= 70 mA
- Net Weight
- 0.064 kg
- Signalling Type
- steady || rotating || flashing || blinking
- Signalling Type
- steady/blinking/flashing/rotating
MaterialPC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
Length50 mm
Maximum Power Dissipation In W1.5 W
Assembly Styleup to 4 units with buzzer || customer assembly, up to 5 units
Flashing Frequency1 Hz blinking || 0.23 Hz slow flashing || 7.26 Hz fast flashing || 2.33 Hz slow rotating || 3.3 Hz fast rotating
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1403004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CE || CSA || UL
- Ip Degree Of Protection
- IP65
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-50 °C
Vibration Resistance2 gn
