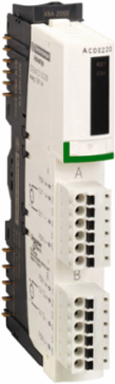

Schneider Electric STBACO8220K Standard Analog Output HART Kit, 4-20 mA, 15 Bits, 128.3 mm Width
- MPN: STBACO8220K
- PPN: SCH-STBACO8220K
CAD
$1060.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for seamless integration within power distribution systems, this standard analog output HART kit offers exceptional performance and reliability. With a resolution of 15 bits and the capability to handle current outputs from 4 to 20 mA, it ensures precise data transmission for critical applications. The kit is compatible with Schneider Electric's STBPDT3100/3105 power distribution modules and includes essential components like a mounting base and terminal connectors, making installation straightforward and efficient. Engineered to operate in a wide temperature range and featuring robust protection against environmental factors, this output kit is an ideal choice for industrial settings that demand accuracy and durability.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, Singapore, United States |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Data Format | IEC 61131-2, EN 61131-2 |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)5 gn 58-150 Hz) on 35 mm DIN rail, 3 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Certificate Agency | UL, FM Class 1 Division 2, CSA |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | false |
| Fallback Status | state 0 |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED green module status (RDY)1 LED red module error (ERR) |
| Network Type | DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | No |
| Supply | power distribution module |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/- 0.05 %/°C+/- 0.05 %/°C |
| Update Time | 8 ms |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Differential Linearity | monotonic |
| Width Nominal | 128.3 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 144.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Kit Composition | STBACO8220 module, STBXBA2000 base, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector |
| Integral Linearity | +/- 0.05 %FS, +/- 0.05 %FS |
| Local Data Status | Publishable |
| Return Indicator | N |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Analogue Output Current2 | 0.02 A |
| Cold Swapping | yes |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Overvoltage Category | II |
| Product Or Component Type | standard analog output kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Response Time | 40 ms plus update time |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Typical Current Consumption | 210 mA 5 V DC for logic bus |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | true |
| Height Nominal | 18.4 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Rack-assembly Possible | false |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200020 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA1000 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | standard analog output kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Number | 2 |
|---|---|
| Analogue Output Type | current 4...20 mA |
| Analogue Output Resolution | 15 bits |
|---|---|
| Output Protection Type | short-circuit protection |
Input Attributes
| Analogue Input Number | 0 |
|---|
