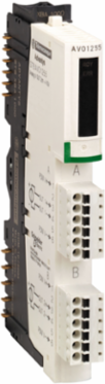

Schneider Electric STBAVO1255K lectric STBAVO1255 Analog Output Module, 2 Outputs, 0-10V, 10 Bits, IP20
- MPN: STBAVO1255K
- PPN: SCH-STBAVO1255K
CAD
$420.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
lectric STBAVO1255 Analog Output Module, 2 Outputs, 0-10V, 10 Bits, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBAVO1255 module, STBXTS2100, 6-terminal spring clamp connector
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0175469143, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0056813029, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 10 kg CO2 eq., 10.4733
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Use Carbon Footprint
- 10.4733
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Marking
- CE
- Product Or Component Type
- basic analog output kit
- Returnability
- No
- Sustainable Packaging
- No
- Update Time
- 25 ms
- Database Version
- 2015-04
- Pcr Version
- PEP-PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Height Nominal
- 13.9 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 107.892
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 212.1795
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyFM Class 1 Division 2, UL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0405212
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.0921085714
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Hot Swapping Fallbackno for basic NIMs
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon STB distributed I/O solution
Software VersionEIME v5.5
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Pep CodeENVPEP1511012EN
Pep Verification Date2015-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor and control industrial automation process during 10 years 100% of the time
Energy Consumption On Product Lifetime, In Kwh17.739
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Width Nominal128.3 mm
Package Weight(Lbs)136.000 g
Warranty (In Months)18
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]10.4733
Water Pollution (M3) Operational Energy Use [B6]439.4655
Environment Attributes Main
- Product Compatibility
- mounting base STBXBA1000, power distribution module STBPDT3100/3105
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511012EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Pep Verification Date
- 2015-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint17.6291579886
Environmental DisclosureENVPEP1511012EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1511012EN
Pcr VersionPEP-PCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- basic analog output kit
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Output Attributes
- Analogue Output Current
- 0.005 A
- Analogue Output Type
- voltage 0...10 V
Analogue Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Number
- 0
