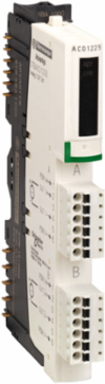

Schneider Electric STBACO1225K Modicon STB Basic Analog Output Kit, 2 Outputs, 10 bits, IP20
- MPN: STBACO1225K
- PPN: SCH-STBACO1225K
CAD
$420.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue output kit has 2 analogue outputs with 10bit resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- STBXBA1000 base, STBACO1225 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0175469143, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0056813029, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 9.3096
- Local Publishable Date
- 2024-02-10
- Stocking Flag
- N
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Use Carbon Footprint
- 9.3096
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Conversion Time
- 900 ms
- Marking
- CE
- Product Or Component Type
- basic analog output kit
- Returnability
- Yes
- Sustainable Packaging
- No
- Update Time
- 25 ms
- Pep Code
- ENVPEP1511012EN
- Pep Verification Date
- 2015-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor and control industrial automation process during 10 years 100% of the time
- Energy Consumption On Product Lifetime In Kwh
- 15.768
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Width Nominal
- 128.3 mm
- Package Weight(Lbs)
- 136.0 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 95.904
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 34.8237
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 188.604
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 175.113
- Water Pollution (M3) Operational Energy Use [B6]
- 390.636
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyCSA, UL, FM Class 1 Division 2
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0405212
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.0921085714
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Analogue Output Current20.02 A
Hot Swapping Fallbackno for basic NIMs
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon STB distributed I/O solution
Software VersionEIME v5.5
Total Lifecycle Carbon Footprint16 kg CO2 eq.
Dc Supply Voltage24-24 V
Database Version2015-04
Pcr VersionPEP-PCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Height Nominal13.9 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]399.267
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]9.3096
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]175.113
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]13.4955
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]13.4955
Customs Code8538908180
Environment Attributes Main
- Product Compatibility
- power distribution module STBPDT3100/3105, mounting base STBXBA1000
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511012EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Pep Verification Date
- 2015-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint16.4654579886
Environmental DisclosureENVPEP1511012EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1511012EN
Pcr VersionPEP-PCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- basic analog output kit
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Output Attributes
- Analogue Output Number
- 2
Analogue Output Typecurrent 4...20 mA
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Number
- 0
Accessories
