Schneider Electric STBAVO0200K Standard Analog Output Kit, 2 Outputs, +/- 10V, 15 Bits with Sign
Schneider Electric STBAVO0200K Standard Analog Output Kit, 2 Outputs, +/- 10V, 15 Bits with Sign
- MPN: STBAVO0200K
- PPN: SCH-STBAVO0200K
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$708.86/ EA
Description

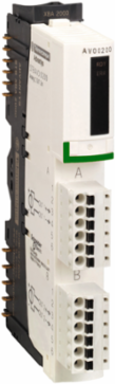

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 265mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector, STBXBA2000 base and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Environment
- Product Certifications
- CSA || UL || FM Class 1 Division 2
- Ambient Air Temperature For Operation
- -25-75 °C without)
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Pollution Degree
- 2 IEC 60664-1
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Ambient Air Temperature For Operation
- 13...158 °F without
Ambient Air Temperature For Storage-40...185 °F without
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
Ip Degree Of ProtectionIP20 IEC 61131-2 class 1
Ambient Air Temperature For Storage-40-85 °C without
Operating Altitude<= 2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Cold Swapping
- yes
- Status Led
- 1 LED (green) module status (RDY) || 1 LED (red) module error (ERR)
- Differential Linearity
- monotonic
- Supply
- power distribution module
- Data Format
- EN 61131-2 || IEC 61131-2
- Marking
- CE
- Fallback Status
- state 0 basic NIMs || user configurable standard NIMs
- Insulation Between Channels And Actuator Bus
- 200 V
- Addressing Requirement
- 4 output words
- Protection Type
- short-circuit protection
- Width
- 128.3 mm
- Depth
- 70 mm
- [Us] Rated Supply Voltage
- 24 V DC
Height18.4 mm
Hot Swapping Fallbackyes for standard NIMs
Integral Linearity+/- 0.5 %FS
Analogue Output Current150-150 mA
Current Consumption265 mA 5 V DC logic bus
Net Weight0.116 kg
Temperature Drift+/-0.01 %/°C
Absolute Accuracy Error+/- 0.3 % of full scale 25 °C
Response Time3 ms
Update Time8 ms
Overvoltage CategoryII
Product Compatibilitymounting base STBXBA2000 || power distribution module STBPDT3100/3105
Specifications
- Range Of Product
- Modicon STB distributed I/O solution
- Product Or Component Type
- standard analog output kit
- Analogue Output Resolution
- 15 bits + sign
Analogue Output Typevoltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
Analogue Output Number2
Kit CompositionSTBAVO0200 module || STBXTS2100, 6-terminal spring clamp connector || STBXBA2000 base || STBXTS1100, 6-terminal screw type connector
