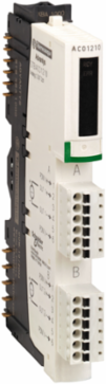

Schneider Electric STBACO1210K Modicon STB Standard Analog Output Kit 0-20mA 12-Bit, IP20

Modicon STB Standard Analog Output Kit 0-20mA 12-Bit, IP20
  • MPN: STBACO1210K
  • PPN: SCH-STBACO1210K

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$460.08/ EA

Description

This output kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This standard analog output kit is an accessory kit for programmable logic controllers (PLC) and programmable automation controllers (PAC). It has 2 analog output (current 0mA to 20mA) with 12bit plus sign resolution. This product is compatible with most major Fieldbus networks. It is an analog input kit with a rated supply voltage of 24V DC and a current consumption of 40mA at 5V DC for logic bus. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.117kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is compatible with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBACO1210 module and STBXTS1100, 6-terminal screw type connector. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Specifications

Environment

Product Certifications
FM Class 1 Division 2 || UL || CSA
Ambient Air Temperature For Operation
0-60 °C without)
Vibration Resistance
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Pollution Degree
2 IEC 60664-1
Relative Humidity
95-95 % 60-60 °C without condensation
Ambient Air Temperature For Operation
32...140 °F without
Ambient Air Temperature For Storage-40...185 °F without
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
Ip Degree Of ProtectionIP20 IEC 61131-2 class 1
Ambient Air Temperature For Storage-40-85 °C without
Operating Altitude<= 2000 m

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Insulation Between Channels And Logic Bus
1500 V for 1 minute
Height
13.9 mm
Hot Swapping Fallback
yes for standard NIMs
Integral Linearity
+/- 0.1 %FS
Analogue Output Current
0.02-0.02 A
Current Consumption
40 mA 5 V DC logic bus
Net Weight
0.117 kg
Temperature Drift
+/-0.01 %/°C
Absolute Accuracy Error
+/- 0.5 % of full scale per °C
Response Time
3 ms
Update Time
25 ms
Overvoltage Category
II
Product Compatibility
mounting base STBXBA1000 || power distribution module STBPDT3100/3105
[Us] Rated Supply Voltage
24 V DC
Cold Swappingyes
Status Led1 LED (green) module status (RDY) || 1 LED (red) module error (ERR)
Differential Linearitymonotonic
Supplypower distribution module
Data FormatEN 61131-2 || IEC 61131-2
MarkingCE
Fallback Statusstate 0 basic NIMs || user configurable standard NIMs
Insulation Between Channels And Actuator Bus30 V
Addressing Requirement2 output words || 1 word for configuring fallback status
Protection Typeshort-circuit protection
Width128.3 mm
Depth70 mm
Conversion Time900 ms at +/- 0.1 % of final value

Specifications

Range Of Product
Modicon STB distributed I/O solution
Product Or Component Type
standard analog output kit
Analogue Output Resolution
12 bits
Analogue Output Typecurrent 0...20 mA
Analogue Output Number2
Kit CompositionSTBXTS1100, 6-terminal screw type connector || STBACO1210 module || STBXBA1000 base || STBXTS2100, 6-terminal spring clamp connector
