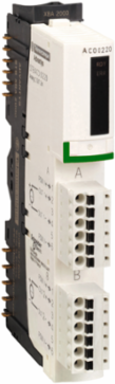

Schneider Electric STBACO0220K Modicon STB 4-20mA Analog Output Kit, 15-Bit Resolution, 2 Outputs
Schneider Electric STBACO0220K Modicon STB 4-20mA Analog Output Kit, 15-Bit Resolution, 2 Outputs
- MPN: STBACO0220K
- PPN: SCH-STBACO0220K
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$840.08/ EA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 210mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBXBA2000 base and STBAVI1270 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Environment
- Product Certifications
- CSA || UL || FM Class 1 Division 2
- Ambient Air Temperature For Operation
- 0-60 °C without)
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Pollution Degree
- 2 IEC 60664-1
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Ambient Air Temperature For Operation
- 32...140 °F without
Ambient Air Temperature For Storage-40...185 °F without
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
Ip Degree Of ProtectionIP20 IEC 61131-2 class 1
Ambient Air Temperature For Storage-40-85 °C without
Operating Altitude<= 2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Height
- 18.4 mm
- Hot Swapping Fallback
- yes for standard NIMs
- Integral Linearity
- +/- 0.5 %FS
- Analogue Output Current
- 0.02-0.02 A
- Current Consumption
- 210 mA 5 V DC logic bus
- Fallback Status
- state 0 basic NIMs || user configurable standard NIMs
- Insulation Between Channels And Actuator Bus
- 200 V
- Response Time
- 4 ms
- Width
- 128.3 mm
- Depth
- 70 mm
- Conversion Time
- 4 ms for both channels
Cold Swappingyes
Status Led1 LED (green) module status (RDY) || 1 LED (red) module error (ERR)
Differential Linearitymonotonic
Supplypower distribution module
Data FormatEN 61131-2 || IEC 61131-2
MarkingCE
Temperature Drift+/-0.005 %/°C
Absolute Accuracy Error+/- 0.3 % of full scale 25 °C
Update Time8 ms
Overvoltage CategoryII
Product Compatibilitypower distribution module STBPDT3100/3105 || mounting base STBXBA1000
[Us] Rated Supply Voltage24 V DC
Specifications
- Range Of Product
- Modicon STB distributed I/O solution
- Product Or Component Type
- standard analog output kit
- Analogue Output Resolution
- 15 bits + sign
Analogue Output Typecurrent 4...20 mA
Analogue Output Number2
Kit CompositionSTBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector || STBXBA2000 base || STBACO0220 module
