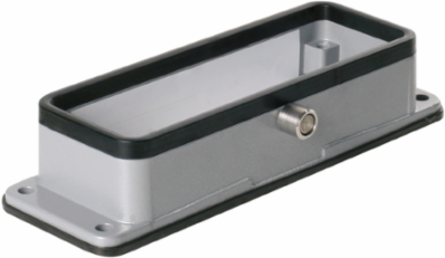

Weidmuller 1611350000 HDC 24B AZO
- MPN: 1611350000
- PPN: WDM-1611350000
CAD
$22.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 8, Protection degree: IP65, Open base, Central locking at the top, Standard
Documentation & Downloads
Specifications
General Data
| EMC housings | No |
|---|---|
| Material of locking element | Stainless steel, rust-proof |
| Surface finish | Powder coating |
| Housing main material | diecast aluminium |
|---|---|
| Protection degree | IP65 |
| Tightening torque | 1.2 Nm |
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 58.5 mm |
|---|---|
| Height | 29.3 mm |
| Mounting dimension - width | 130 mm |
| Net weight | 108 g |
| Width (inches) | 2.303 inch |
|---|---|
| Height (inches) | 1.154 inch |
| Mounting dimension - height | 32 mm |
General Descriptions
| Type of locking | Central-locking clamp |
|---|---|
| Protection degree | IP65 |
| Size | 8 |
|---|
Dimensions
| Height of base B1 | 5.3 mm |
|---|---|
| Hole pitch length A2 | 130 mm |
| Width base C1 | 47 mm |
| Height of housing B | 29 mm |
|---|---|
| Total length housing | 120 mm |
| Width housing C | 43 mm |
Version
| Clamp version | Central-locking clamp |
|---|---|
| Design of housing | Open base |
| Sealing | NBR |
| Suitable for ModuPlug | Yes |
| Top part/bottom part/lid | lower part |
| Design | Standard |
|---|---|
| Design of locking system | Central locking at the top |
| Size | 8 |
| Tightening torque | 1.2 Nm |
| Type | Bulkhead (feed-through) |
Material
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Design
| Product family | HDC enclosures |
|---|---|
| Type | Bulkhead (feed-through) |
| Product type | Enclosures |
|---|
Temperatures
| Limit temperature | -40 °C ... 125 °C |
|---|
