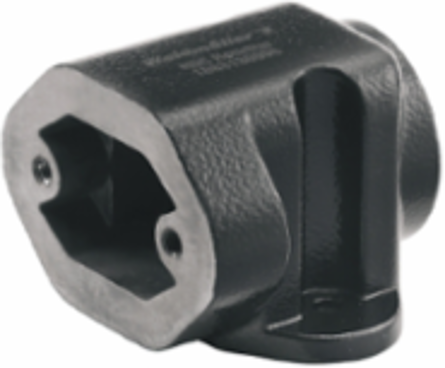

Weidmuller 1083130000 HDC IP68 04A ADS
- MPN: 1083130000
- PPN: WDM-1083130000
CAD
$43.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 1, Protection degree: IP68, IP69K, Open base, Clamping yoke connection, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- Yes
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP68, IP69K
Approvals
- Approvals
- CE, DNV GL
ROHSConform
Dimensions And Weights
- Width
- 45.5 mm
- Height
- 38.6 mm
- Depth
- 50 mm
- Mounting dimension - width
- 30 mm
Width (inches)1.791 inch
Height (inches)1.52 inch
Depth (inches)1.969 inch
Net weight88 g
General Descriptions
- Size
- 1
Protection degreeIP68, IP69K

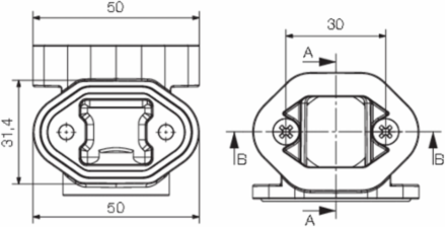

Dimensions
- Hole pitch length A2
- 30 mm
Total length housing50 mm
Version
- Clamp version
- Clamping yoke connection
- Design of housing
- Open base
- Sealing
- Silicone rubber
- Suitable for ModuPlug
- No
- Type
- Base housing
DesignStandard
Design of locking systemClamping yoke connection
Size1
Top part/bottom part/lidlower part
Material
- Colour
- black
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Design
- Product family
- HDC enclosures
- Type
- Base housing
Product typeEnclosures
Temperatures
- Limit temperature
- -50 °C ... 125 °C
