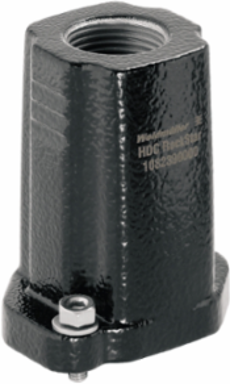

Weidmuller 1082390000 HDC IP68 04A TOS 1M20
- MPN: 1082390000
- PPN: WDM-1082390000
CAD
$38.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 1, Protection degree: IP68, IP69K, Plug housing, Clamping yoke connection, Standard, Size of cable entries: M 20
Documentation & Downloads
Specifications
General Data
- EMC housings
- Yes
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP68, IP69K
Tightening torque2.2 Nm
Approvals
- Approvals
- CE, DNV GL
ROHSConform

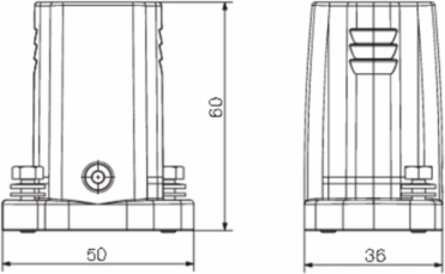

Dimensions And Weights
- Width
- 36 mm
- Height
- 60 mm
- Depth
- 50 mm
- Net weight
- 96 g
Width (inches)1.417 inch
Height (inches)2.362 inch
Depth (inches)1.969 inch
General Descriptions
- Size of cable entries
- M 20
- Protection degree
- IP68, IP69K
Size1
Dimensions
- Cable entry
- w. threading
Total length housing50 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- Clamping yoke connection
- Number of cable entry on top
- 1
- Size
- 1
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- upper part
Clamp versionClamping yoke connection
Design of housingPlug housing
Internal threadM 20
Number of cable entry sideways0
Size of cable entriesM 20
Tightening torque2.2 Nm
TypePlug
Material
- Colour
- black
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Design
- Product family
- HDC enclosures
- Type
- Plug
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -50 °C ... 125 °C
