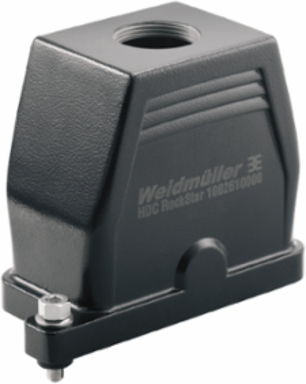

Weidmuller 1082580000 HDC IP68 10B TOS 1M20
- MPN: 1082580000
- PPN: WDM-1082580000
CAD
$107.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 4, Protection degree: IP68, IP69K, Plug housing, Clamping yoke connection, Standard, Size of cable entries: M 20
Documentation & Downloads
Specifications
General Data
| EMC housings | Yes |
|---|---|
| Material of locking element | Stainless steel, rust-proof |
| Surface finish | Powder coating |
| Housing main material | diecast aluminium |
|---|---|
| Protection degree | IP68, IP69K |
| Tightening torque | 6.5 Nm |
Approvals
| Approvals | CE, DNV GL |
|---|

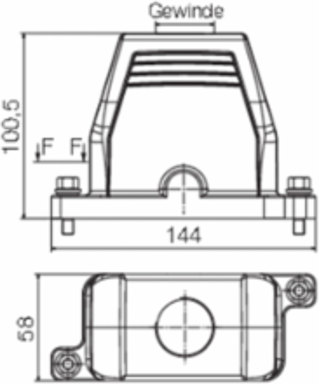

Dimensions And Weights
| Width | 58 mm |
|---|---|
| Height | 100.5 mm |
| Depth | 144 mm |
| Net weight | 434 g |
| Width (inches) | 2.283 inch |
|---|---|
| Height (inches) | 3.957 inch |
| Depth (inches) | 5.669 inch |
General Descriptions
| Size of cable entries | M 20 |
|---|---|
| Protection degree | IP68, IP69K |
| Size | 4 |
|---|
Dimensions
| Cable entry | w. threading |
|---|
| Total length housing | 144 mm |
|---|
Version
| Cable entry | w. threading |
|---|---|
| Design | Standard |
| Design of locking system | Clamping yoke connection |
| Number of cable entry on top | 1 |
| Size | 4 |
| Suitable for ModuPlug | Yes |
| Top part/bottom part/lid | upper part |
| Clamp version | Clamping yoke connection |
|---|---|
| Design of housing | Plug housing |
| Internal thread | M 20 |
| Number of cable entry sideways | 0 |
| Size of cable entries | M 20 |
| Tightening torque | 6.5 Nm |
| Type | Plug |
Material
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | DIBP 84-69-5 |
|---|
Design
| Product family | HDC enclosures |
|---|---|
| Type | Plug |
| Product type | Enclosures |
|---|---|
| Cable entry | w. threading |
Temperatures
| Limit temperature | -50 °C ... 125 °C |
|---|
