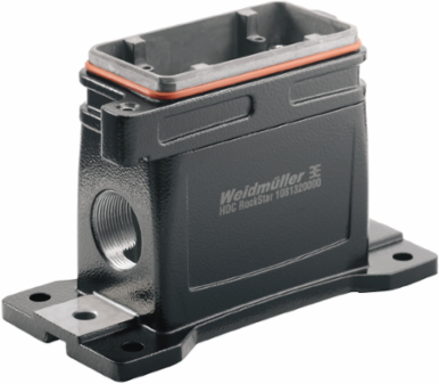

Weidmuller 1081380000 HDC IP68 16B SS 1PG36
- MPN: 1081380000
- PPN: WDM-1081380000
CAD
$95.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 6, Protection degree: IP68, IP69K, Closed base, Clamping yoke connection, Standard, Size of cable entries: PG 36
Documentation & Downloads
Specifications
General Data
| EMC housings | Yes |
|---|---|
| Protection degree | IP68, IP69K |
| Housing main material | diecast aluminium |
|---|---|
| Surface finish | Powder coating |
Approvals
| Approvals | CE, DNV GL |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 80 mm |
|---|---|
| Height | 111.5 mm |
| Mounting dimension - width | 160 mm |
| Net weight | 1,043 g |
| Width (inches) | 3.15 inch |
|---|---|
| Height (inches) | 4.39 inch |
| Mounting dimension - height | 60 mm |
General Descriptions
| Size of cable entries | PG 36 |
|---|---|
| Protection degree | IP68, IP69K |
| Size | 6 |
|---|

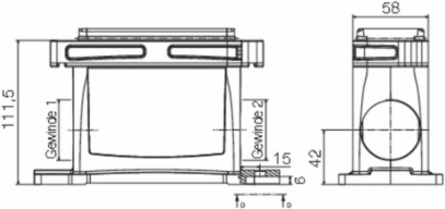

Dimensions
| Cable entry | w. threading |
|---|---|
| Hole pitch length A2 | 160 mm |
| Height of housing B | 111.5 mm |
|---|---|
| Total length housing | 189 mm |
Version
| Cable entry | w. threading |
|---|---|
| Design | Standard |
| Design of locking system | Clamping yoke connection |
| Number of cable entry on top | 0 |
| Sealing | Silicone rubber |
| Size of cable entries | PG 36 |
| Top part/bottom part/lid | lower part |
| Clamp version | Clamping yoke connection |
|---|---|
| Design of housing | Closed base |
| Internal thread | PG 36 |
| Number of cable entry sideways | 1 |
| Size | 6 |
| Suitable for ModuPlug | Yes |
| Type | Base housing |
Material
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| UNSPSC | 30-21-18-01 |
Design
| Product family | HDC enclosures |
|---|---|
| Type | Base housing |
| Product type | Enclosures |
|---|---|
| Cable entry | w. threading |
Temperatures
| Limit temperature | -50 °C ... 125 °C |
|---|
