Harmony XB6 Green Rectangular Flush Push Button Head 16mm IP65
Schneider Electric

Schneider Electric ZB6DW3 Harmony XB6 Green Rectangular Flush Push Button Head 16mm IP65

  • MPN: ZB6DW3
  • PPN: SCH-ZB6DW3
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $18.52

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

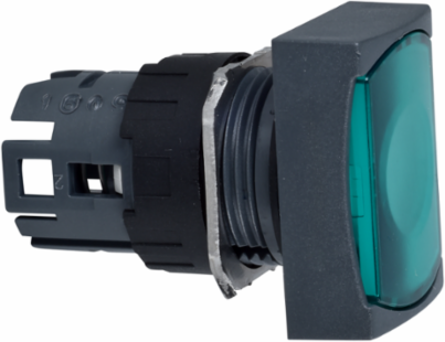

    This Harmony ZB6DW3 is a green rectangular flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France, Mexico

    Physical Attributes

    Cad Overall Depth
    33 mm
    Cad Overall Width
    24 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Vibration Resistance
    +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]
    0.0013076588, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0011273973, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Bezel Material
    plastic
    Device Short Name
    ZB6
    Mounting Diameter
    16 mm
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    Yes
    Shape Of Signaling Unit Head
    rectangular
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.2 kg CO2 eq.
    Pep Code
    ENVPEP2403025EN
    Pep Verification Date
    2023-10-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538908180
    Certificate AgencyCSA, GOST, CCC, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.018143213
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2233935243
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2403025EN
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Compatibility CodeZB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Operator Profilegreen flush, unmarked
    Product Or Component Typehead for illuminated push-button
    Range Of ProductHarmony XB6
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Type Of Operatorspring return
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %17
    Package Weight(Lbs)10.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4X CSA C22.2 No 94NEMA 13 CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 4 CSA C22.2 No 94
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2403025EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    integral LED
    Pep Code
    ENVPEP2403025EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.2439717933
    Environmental DisclosureENVPEP2403025EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach Free Of SvhcYes
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    head for illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
