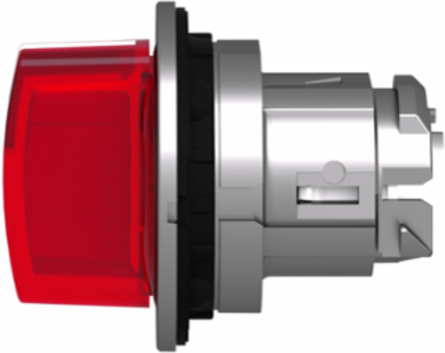

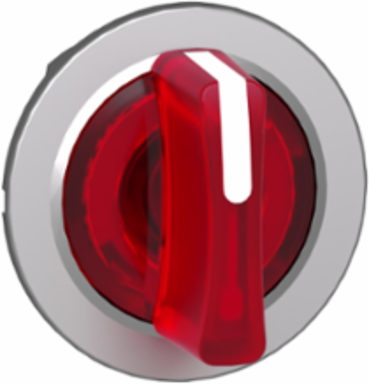

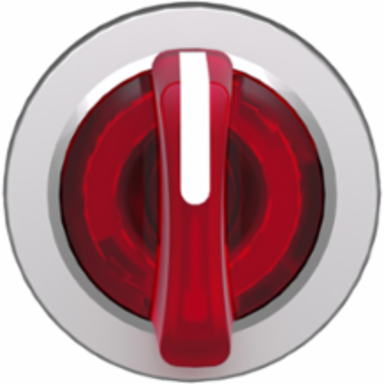

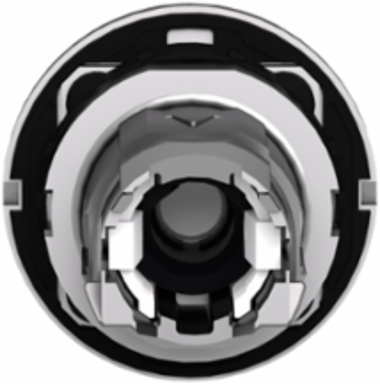

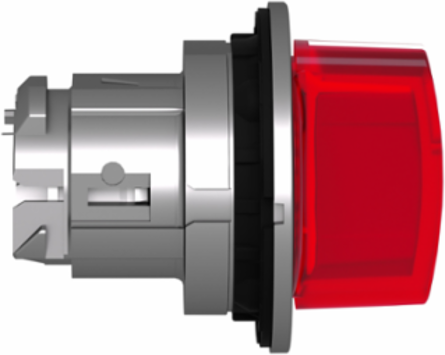

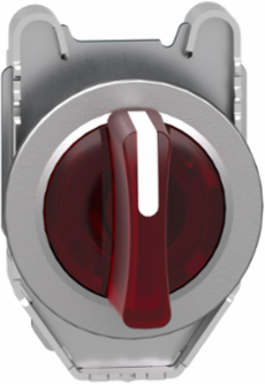

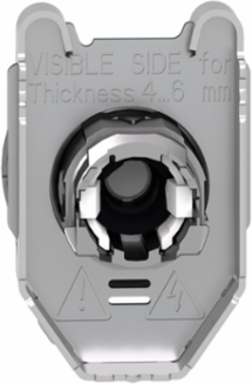

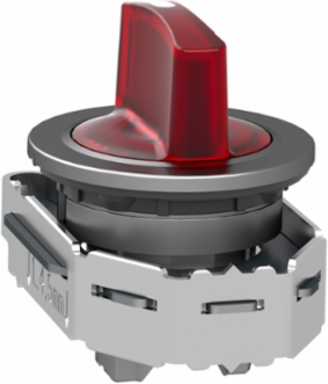

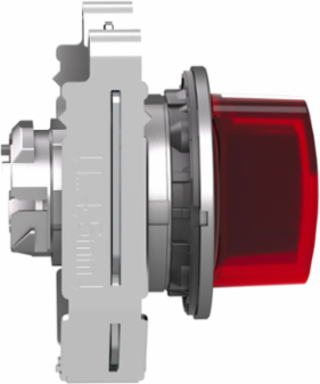

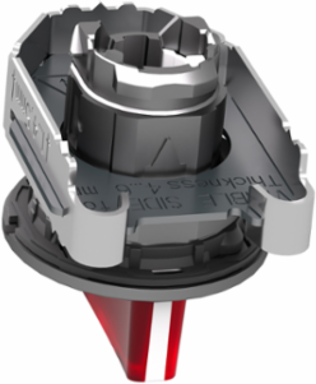

Schneider Electric ZB4FK1543 Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center

Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center
Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center
Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center
Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center
Head for illuminated selector switch, Harmony XB4, metal, red handle, 30mm, universal LED, 3 positions, to center
  • MPN: ZB4FK1543
  • PPN: SCH-ZB4FK1543

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$73.49/ EA

    Description

    This 30.5mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

    Specifications

    Environment

    Product Certifications
    UL listed || CSA || CCC || EAC
    Ambient Air Temperature For Operation
    -40-70 °C
    Overvoltage Category
    class I IEC 60536
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    Ambient Air Temperature For Storage-40-70 °C
    StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1808008EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1808008EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Important Information

    Important Message
    A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

    Complementary

    Mechanical Durability
    500000 cycles

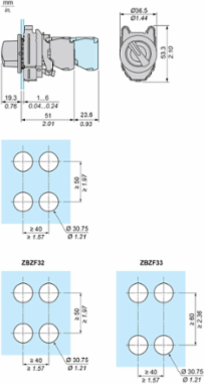

    Cad Overall Width
    36.6 mm
    Net Weight
    0.078 kg
    Device Presentation
    basic element
    Electrical Composition CodeM3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
    Cad Overall Depth47 mm
    Cad Overall Height36.6 mm
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m

    Specifications

    Sale Per Indivisible Quantity
    1
    Bezel Material
    chromium plated metal
    Operator Position Information
    3 positions +/- 45°
    Type Of Operator
    to centre spring return
    Shape Of Signaling Unit Head
    round
    Device Short Name
    ZB4F
    Range Of ProductHarmony XB4
    Operator Profilered standard handle
    Mounting Diameter30.5 mm
    Product Or Component Typehead for illuminated selector switch
    Product Compatibilityuniversal LED
    Head Typebuilt-in-flush
