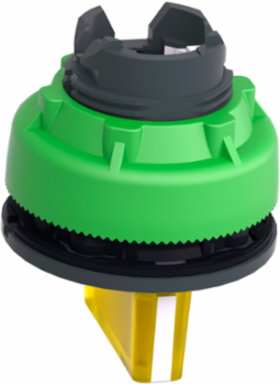

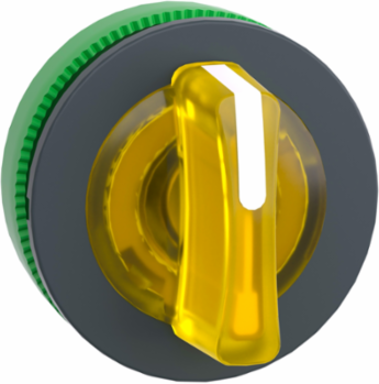

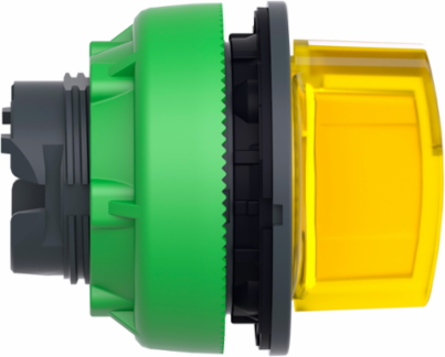

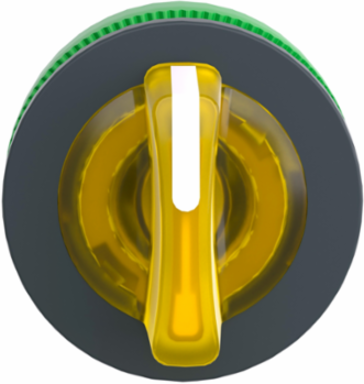

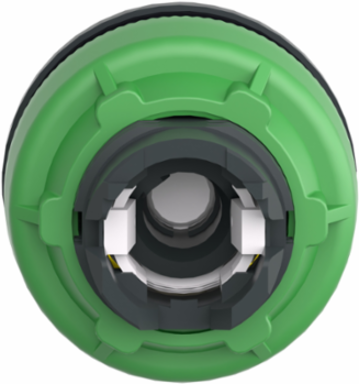

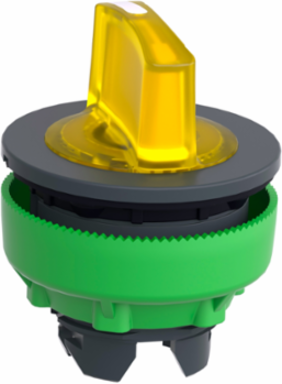

Schneider Electric ZB5FK1383 Harmony XB5 Illuminated Selector Switch Head, 30 mm, 3 Positions, IP66/IP67/IP69K
- MPN: ZB5FK1383
- PPN: SCH-ZB5FK1383
CAD
$102.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- dark grey plastic
- Operator Position Information
- 3 positions +/- 45°
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Device Short Name
- ZB5
Range Of ProductHarmony XB5
Operator Profileyellow standard handle

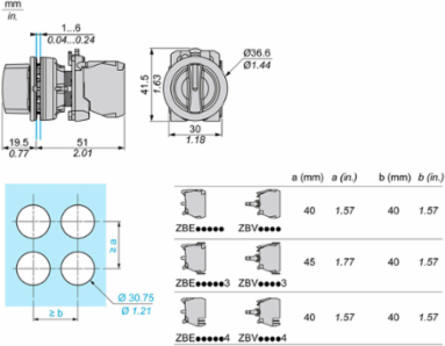

Mounting Diameter30.5 mm
Product Or Component Typehead for illuminated selector switch
Product Compatibilityuniversal LED
Head Typebuilt-in-flush
Complementary
- Mechanical Durability
- 500000 cycles
- Cad Overall Width
- 37 mm
- Net Weight
- 0.03 kg
Electrical Composition CodeM3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Cad Overall Depth46 mm
Cad Overall Height37 mm
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || BV || CSA || DNV || UL listed || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of ProtectionIK03 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsEN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
