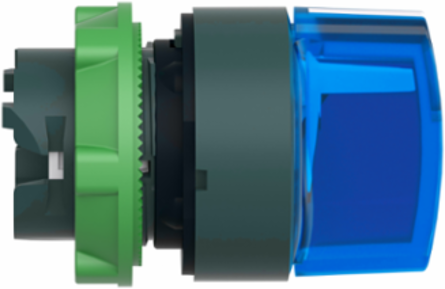

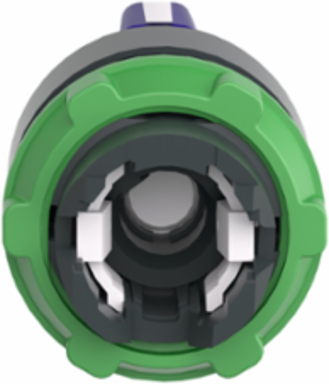

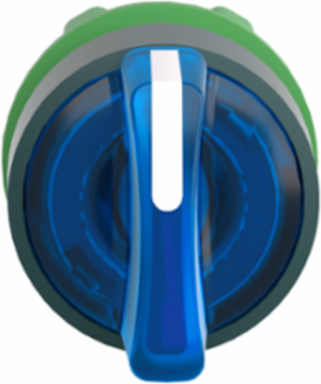

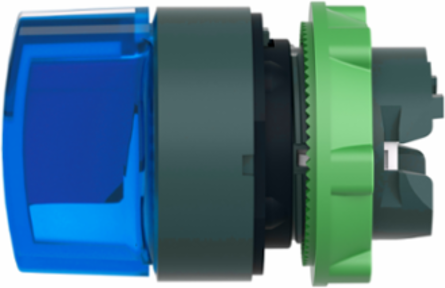

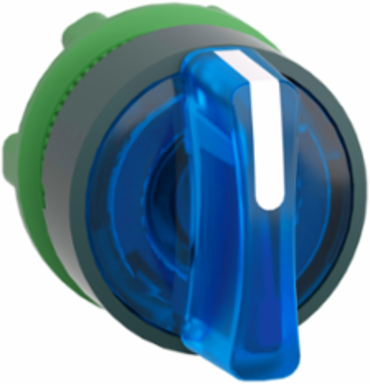

Schneider Electric ZB5AK1363 Blue Illuminated Selector Switch Head, 22mm, 3 Positions, IP69K
Schneider Electric ZB5AK1363 Blue Illuminated Selector Switch Head, 22mm, 3 Positions, IP69K
- MPN: ZB5AK1363
- PPN: SCH-ZB5AK1363
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$60.14/ EA
Description
This blue illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- DNV || UL listed || LROS (Lloyds register of shipping) || BV || CSA || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK04 conforming to IEC 50102
StandardsUL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Electrical Composition Code
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and double front mounting integral LED
- Cad Overall Height
- 29 mm
- Mechanical Durability
- 500000 cycles
- Cad Overall Width
- 29 mm
Net Weight0.016 kg
Device Presentationbasic element
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth43 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- blue standard handle
- Product Compatibility
- universal LED
Mounting Diameter22 mm
Product Or Component Typehead for illuminated selector switch
Head Typestandard
Bezel Materialdark grey plastic
Operator Position Information3 positions +/- 45°
Device Short NameZB5
