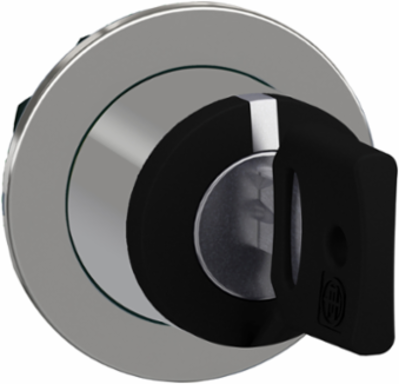

Schneider Electric ZB4FG8 Harmony XB4 Key Selector Switch Head 30.5 mm, 3 Positions, IP69
- MPN: ZB4FG8
- PPN: SCH-ZB4FG8
CAD
$88.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Key Withdrawal Position
- center
- Range Of Product
- Harmony XB4
- Operator Profile
- black key switch
- Mounting Diameter
- 30.5 mm
- Return
- right to centre
- Shape Of Signaling Unit Head
- round
- Type Of Keylock
- key 455
Sale Per Indivisible Quantity1
Bezel Materialchromium plated metal
Operator Position Information3 positions +/- 45°
Type Of Operatorspring return
Product Or Component Typehead for key selector switch
Device Short NameZB4F
Head Typebuilt-in-flush
Complementary
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 36.6 mm
- Net Weight
- 0.133 kg
- Device Presentation
- basic element
Electrical Composition CodeC3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
Cad Overall Depth49 mm
Cad Overall Height36.6 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Environment
- Product Certifications
- UL listed || CSA || CCC || EAC
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Protective Treatment
- TH
Ambient Air Temperature For Operation-40-70 °C
Overvoltage Categoryclass I IEC 60536
Ik Degree Of ProtectionIK06
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
