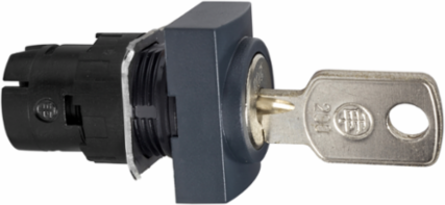

Schneider Electric ZB6DGC Head for key selector switch, Harmony XB6, rectangular Ø 16 2 position stay put 200

Head for key selector switch, Harmony XB6, rectangular Ø 16 2 position stay put 200
  • MPN: ZB6DGC
  • PPN: SCH-ZB6DGC

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$58.09/ EA

Description

This Harmony ZB6DGC is a rectangular selector switch head, 2-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Specifications

Environment

Product Certifications
UL || CCC || CSA || GOST
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || JIS C 852 || JIS C8201-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1710010EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Cad Overall Width
24 mm
Cad Overall Height
18 mm
Cad Overall Depth55 mm

Specifications

Key Withdrawal Position
in any position
Range Of Product
Harmony XB6
Operator Profile
black key switch
Mounting Diameter
16 mm
Product Or Component Type
head for key selector switch
Device Short Name
ZB6
Sale Per Indivisible Quantity1
Bezel Materialplastic
Operator Position Information2 positions
Type Of Operatorstay put
Shape Of Signaling Unit Headrectangular
Type Of Keylockkey 200
