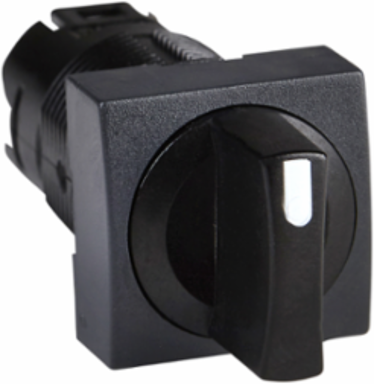

Schneider Electric ZB6CD23 Harmony XB6 16mm Square Selector Switch Head, Black Handle, 3 Positions

Harmony XB6 16mm Square Selector Switch Head, Black Handle, 3 Positions
  • MPN: ZB6CD23
  • PPN: SCH-ZB6CD23

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$22.42/ EA

    Description

    This Harmony ZB6CD23 is a black square selector switch head, 3-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Specifications

    Environment

    Product Certifications
    UL || CSA || CCC || GOST
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-25-70 °C
    StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C 852 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1
    Electrical Shock Protection Classclass II IEC 61140
    Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP65 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Complementary

    Cad Overall Width
    18 mm
    Net Weight
    0.018 kg
    Cad Overall Depth43 mm
    Cad Overall Height18 mm

    Specifications

    Sale Per Indivisible Quantity
    1
    Bezel Material
    plastic
    Operator Position Information
    3 positions 60°
    Type Of Operator
    stay put
    Shape Of Signaling Unit Head
    square
    Range Of ProductHarmony XB6
    Operator Profileblack standard handle
    Mounting Diameter16 mm
    Product Or Component Typehead for selector switch
    Device Short NameZB6
