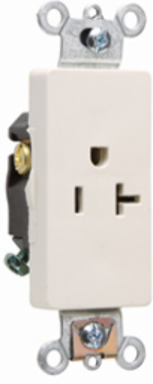

Pass & Seymour 26361LA 20A 125V Heavy Duty Decorator Single Receptacle, Light Almond, 1.322 Inch Width
- MPN: 26361LA
- UPC: 785007785494
- PPN: P-S-26361LA
CAD
$59.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Heavy Duty Decorator Single Receptacle, Light Almond, 1.322 Inch Width
Features
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.188 in
- Length
- 2.635 in
- Width
- 1.322 in
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Decorator Style
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
Special FeaturesCorrosion-resistant, plated wraparound steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
ColorLight Almond
Country of OriginMexico
StandardUL498
Voltage125.0 V
StandardcUL CSA
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles1.0
Application SectorCommercial
Connection LocationBack and Side
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum
Environmental ConditionsFlammability: UL94 V2
