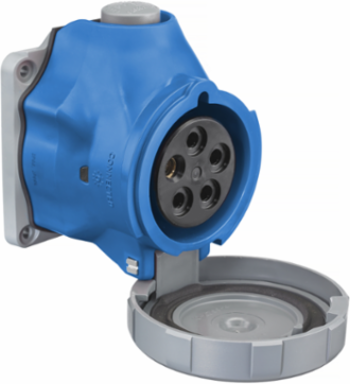

Hubbell Wiring Device-Kellems HBLS560R9W IEC Pin and Sleeve Switched Receptacle 60/63A, 4-Pole 5-Wire, IP69K
- MPN: HBLS560R9W
- UPC: 783585478722
- PPN: HBL-HBLS560R9W
- UNSPSC: 39121406
CAD
$1408.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve, Receptacle, Switched, 60/63A120/208V AC, 4-Pole 5-Wire Grounding, NEMA4X/IP69K
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.400 in
- Color
- Blue
- Number of Wires
- 5-Wire
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Engineering Drawing 1 Display Text
- HBLS560R9W AutoCAD Drawing
- General Literature Asset 2 Display Text
- IEC Pin & Sleeve Devices
- Number Of Poles
- 4-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- PS, SW RCPT,4P5W,60/63A 120/208V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Series
- Advantage® Series
- BOX SIZE
- 8.000x19.700x12.200 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585478722
- NAICS Code
- 335931A104
Current / Amperage Rating60/63 A
Amperage Rating60/63 A
Number of Poles4-Pole
TypeWatertight Receptacle
Voltage Rating Description3 Phase Y 120/208 VAC
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextAdvantage™ Series Switch-Rated IEC Pin & Sleeve Devices
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Base Unit of MeasureEA
Carton - Gross Weight per Pack17.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
