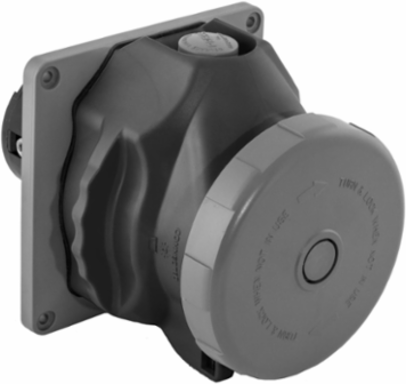

Hubbell Wiring Device-Kellems HBLS5100R5W IEC Pin & Sleeve Receptacle, 100 A 3 Phase Y 347/600 VAC, 4-Pole, IP69k
- MPN: HBLS5100R5W
- UPC: 783585575445
- PPN: HBL-HBLS5100R5W
- UNSPSC: 39121406
CAD
$3950.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve,Receptacle Switched, 100 A 3 Phase Y 347/600 VAC4-Pole 5-Wire Grounding, NEMA 4X/IP69k
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a disconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- Watertight
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.700 in
- Ingress Protection
- TYPE 3R,3RX,4X AND IP68,IP69K
- Amperage Rating
- 100 A
- Color
- Black
- Dielectric Strength
- Withstand 3000V AC
- Insulation
- Insulated Body
- NEMA Rating
- Non-NEMA
- Number of Wires
- 5-Wire
- Standard
- UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2
- Type
- Receptacle
- Wire Size
- #6AWG - #1AWG
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- Mounting Type
- Screw Mount
- Number Of Conductors
- 5-Wire Grounding
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Series
- Advantage® Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2
SizeStandard
ApplicationIndustrial/Commercial
ConnectionPressure Screw Terminal
Environmental ConditionsWatertight
MountingScrew Mount
Number of Poles4-Pole
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact
Voltage Rating3 Phase Y 347/600 VAC
Engineering Drawing 1 Display TextHBLS5100R5W AutoCAD Drawing
General Literature Asset 2 Display TextAdvantage™ Series Switch-Rated IEC Pin & Sleeve Devices
Nema RatingNon-NEMA
Number Of Poles4-Pole
StyleIP69k NEMA 4X
Description - InvoicePS,IEC,SW R, 4P5W, 100A 347/600V,4X/69K
Harmonization Code8536694020
MSDS FlagNo
MaterialComposite
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585575445
