Pass & Seymour

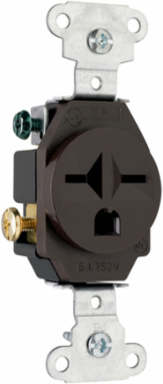

Pass & Seymour 5651 15A 250V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Brown

15A 250V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Brown
  • MPN: 5651
  • UPC: 785007565102
  • PPN: P-S-5651

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.16/ EA

Description

15A 250V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Brown

Features

  • Auto-ground clip assures positive ground.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

Specifications

Depth
1.08 in
Color
Brown
Country of Origin
Mexico
Standard
UL498
Voltage
250.0 V
Indoor/Outdoor
Indoor
Wall Plate Included
No
Standard
CSA C22.2 No. 42
Application Sector
Commercial
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
Operating Temperature Min
-40.0 °C
Operating Temperature
-40°-60°C
Environmental Conditions
Flammability: UL94 V2
Width1.38 in
Product LinePass & Seymour
Special FeaturesAuto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
Amperage15.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Number of PolesDouble Pole
NEMA Configuration Code6-15R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum
