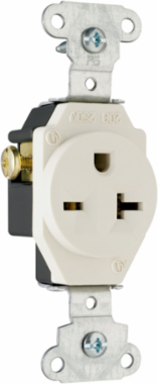

Pass & Seymour 5851LA Heavy Duty 20A 250V Single Receptacle, Side Wire, Light Almond, 1.08 Inch Depth, 1.38 Inch Width
- MPN: 5851LA
- UPC: 785007585131
- PPN: P-S-5851LA
CAD
$21.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty 20A 250V Single Receptacle, Side Wire, Light Almond, 1.08 Inch Depth, 1.38 Inch Width
Features
- Auto-ground clip assures positive ground.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.08 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Standard
- UL498
- Voltage
- 250.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
Width1.38 in
Country of OriginMexico
Special FeaturesAuto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
Amperage20.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code6-20R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
