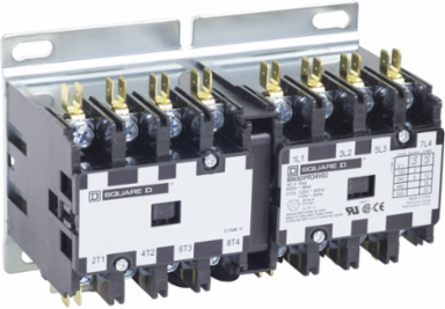

Square D 8965DPR34V02 Reversing Hoist Contactor 30A, 4 Pole, 110/120VAC 50/60Hz Coil
- MPN: 8965DPR34V02
- UPC: 785901025894
- PPN: SCH-8965DPR34V02
CAD
$1115.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 4 pole contactor has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. Has ratings of 10 HP at 230 HP and 15 HP at 460 VAC and 575 VAC poly phase. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.73 inches tall, 5.08 inches wide and 2.98 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, Mexico, United States
Complementary Attributes
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase15-15 hp 460 V AC, 3 phase, 15-15 hp 575 V AC, 3 phase
Line Rated Current30 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Listed
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Or Component Type
- Reversing Hoist Contactor
- Returnability
- Yes
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz120 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles4P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductDPR
Sustainable PackagingYes
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)1.551 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPR
Product Or Component TypeReversing Hoist Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
