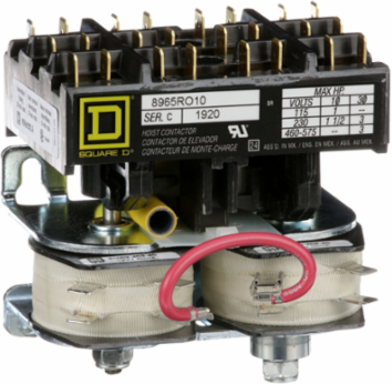

Square D 8965RO10V02 Reversing Hoist Contactor 3 Pole 3 hp 480VAC 120VAC Coil
- MPN: 8965RO10V02
- UPC: 785901032168
- PPN: SCH-8965RO10V02
CAD
$933.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 1 HP at 115 VAC and 1.5 HP at 230 VAC single phase. Has ratings of 3 HP at 230 VAC, at 460 VAC and at 575 VAC three phase. These contactors must be mounted upright on the vertical plane. The contactors will not operate properly when mounted in any other position. The replaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The power terminals have quick connect terminals. This device is with jumper straps. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.31 inches tall, 3.31 inches wide and 3.03 inches deep. Auxiliary contacts are available for these contactors. 8965RO reversing hoist contactors are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Maximum Horse Power Rating
- 1-1 hp 115 V AC, 1 phase1.5-1.5 hp 230 V AC, 1 phase3-3 hp 230 V AC, 3 phase, 3-3 hp 460 V AC, 3 phase, 3-3 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Listed
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Or Component Type
- Reversing Hoist Contactor
- Returnability
- Yes
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz120 V AC 60 Hz
- Package Weight(Lbs)
- 816.466 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductRO
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- Yes
Take BackNo
Eu Rohs DirectiveUnder investigation
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- 3 phase
- Range Of Product
- RO
Product Or Component TypeReversing Hoist Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
