Reversing Hoist Contactor, 3 Pole, 3 HP at 480VAC, 24VAC Coil
Square D

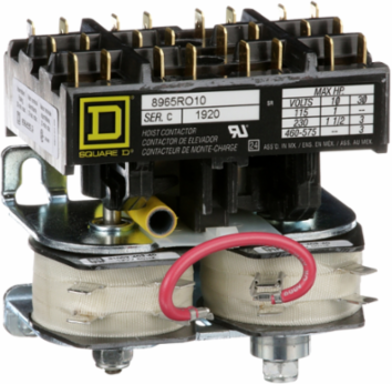

Square D 8965RO10V01 Reversing Hoist Contactor, 3 Pole, 3 HP at 480VAC, 24VAC Coil

  • MPN: 8965RO10V01
  • UPC: 785901032175
  • PPN: SCH-8965RO10V01

CAD

$933.05

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 1 HP at 115 VAC and 1.5 HP at 230 VAC single phase. Has ratings of 3 HP at 230 VAC, at 460 VAC and at 575 VAC three phase. These contactors must be mounted upright on the vertical plane. The contactors will not operate properly when mounted in any other position. The replaceable coil is available with a variety of coil voltages. This device has a 24 VAC 60 Hz coil. The power terminals have quick connect terminals. This device is with jumper straps. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.31 inches tall, 3.31 inches wide and 3.03 inches deep. Auxiliary contacts are available for these contactors. 8965RO reversing hoist contactors are UL component recognized and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

Complementary Attributes

Maximum Horse Power Rating
1-1 hp 115 V AC, 1 phase1.5-1.5 hp 230 V AC, 1 phase3-3 hp 230 V AC, 3 phase, 3-3 hp 460 V AC, 3 phase, 3-3 hp 575 V AC, 3 phase

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Certificate Agency
UL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.2675340278419327
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
5 kg CO2 eq., 4.758189844690646
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
3
Function Option
Standard
Energy Efficiency Optimized
False
Phase
3 phase
Product Or Component Type
Reversing Hoist Contactor
Returnability
Yes
Sustainable Packaging
No
Pep Code
ENVPEP2507018EN
Pep Verification Date
2025-09-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
[Uc] Control Circuit Voltage
24 V AC 60 Hz
Package Weight(Lbs)
811.930 g
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.23463769612135243, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.09714272480224387, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 kg CO2 eq., 4.783565627009871
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductRO
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
11.141069920466046
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2025-09-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Phase
3 phase
Range Of Product
RO
Product Or Component TypeReversing Hoist Contactor

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
