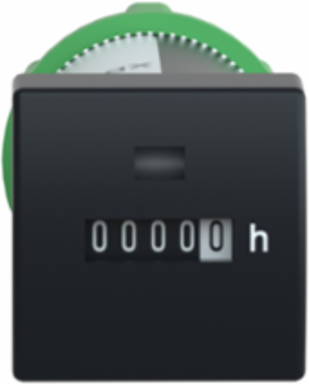

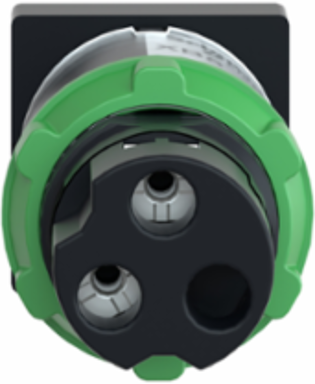

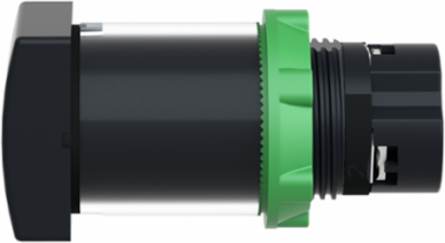

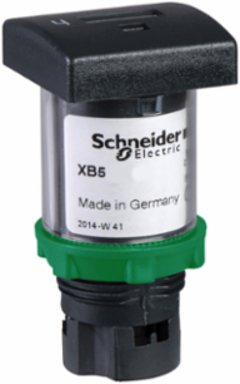

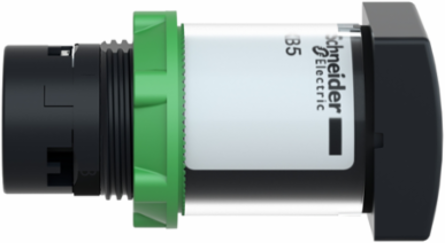

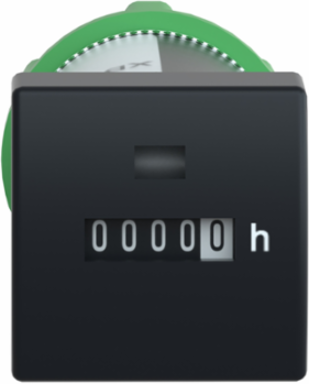

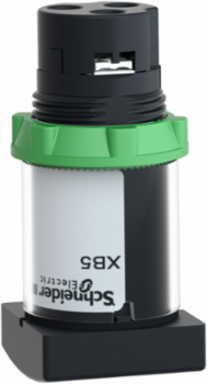

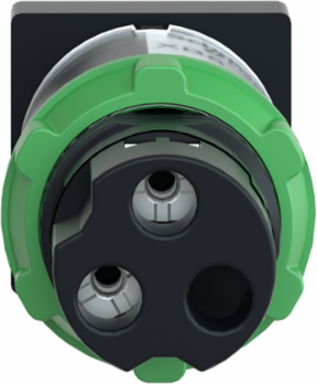

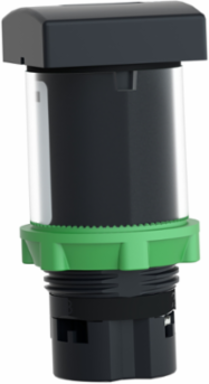

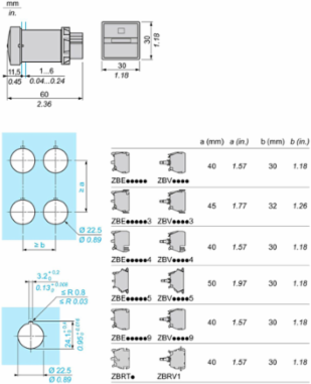

Schneider Electric XB5DSB Harmony XB5 Hour Counter, 22mm, 5 Digits, 12-24V AC/DC, IP65
- MPN: XB5DSB
- PPN: SCH-XB5DSB
CAD
$163.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, hour counter has 5 display digits and is supplied with 12V to 24V AC/DC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Features
- Engineered to seamlessly integrate into any standard 22mm panel hole, the Harmony XB5DSB hour counter offers a direct drop-in replacement for existing setups. This universal sizing allows control room operators and system integrators to upgrade system-monitoring capabilities without the need for time-consuming panel modifications or custom drilling.
- Featuring a versatile operating voltage range of 12V to 24V AC/DC, this hour meter eliminates matching errors and inventory clutter by adapting to varying power environments. It allows industrial maintenance technicians to easily deploy the same counter across diverse machinery, regardless of whether the local control circuit relies on low-voltage alternating or direct current.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth60 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0058844737, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003344211, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 16 kg CO2 eq., 16.0955604396
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2303008EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Current Consumption
- 7...15 mA
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Mounting Mode
- flush-mounted
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Supply Voltage 31 Supply Voltage
- 12...24 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 22.0752
- Energy Model - Installation [A5]
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Energy Model - End Of Life [C1-c4]
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Width Nominal
- 30 mm
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.6375
- Customs Code
- 9029108000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCE, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0393993421
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2700526316
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialdark grey plastic
Display Digits5
Mounting Diameter22 mm
Mounting Supportpanel mounting
Product Or Component Typehour counter
Protective TreatmentTH
Resetwithout
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2303008EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Espagnac (France)
Energy Model - Use [B6]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Height Nominal30 mm
[Us] Rated Supply Voltage12...24 V12...24 V +/- 10 %
Package Weight(Lbs)46.0 g
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-1.6375
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.6375
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 16.411231308
- Environmental Disclosure
- ENVPEP2303008EN
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionUL type 13
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- hour counter
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC002300
ETIM 9EC002300
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- monolithic product
