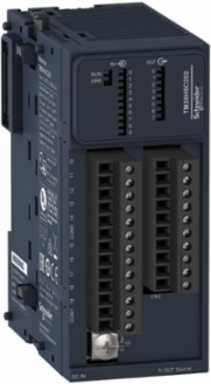

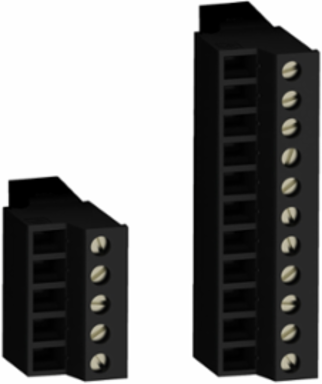

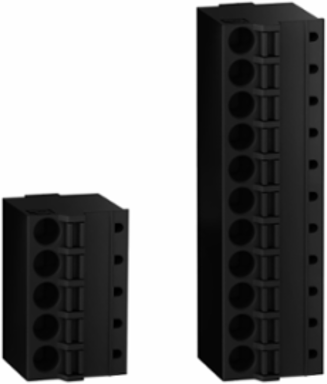

Schneider Electric TM3XHSC202 Modicon TM3 High Speed Counter Module, 2 Channels, 10 Inputs, 8 Outputs
- MPN: TM3XHSC202
- PPN: SCH-TM3XHSC202
CAD
$552.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric TM3XHSC202 Modicon TM3 High Speed Counter Module is engineered for applications requiring rapid input processing and efficient output management. With two channels, this module supports up to ten inputs and eight outputs, making it an ideal solution for tasks that demand precision and high-speed performance. Its design facilitates seamless integration into automation systems, enhancing operational efficiency while ensuring robust control over complex processes. This counter module is a valuable addition for industries aiming to improve performance and reliability in their automation endeavors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Italy, Singapore, United States
Depth85 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Counting Mode
- 2 main expert function (main counting function, frequency meter, period meter), Max 8 simple counting function
- Local Signalling
- 1 LED I/O, 1 LED RUN, 1 LED ERR
- Resistance To Fast Transients
- 2 kV alimentation cableEN/IEC 61000-4-41 kV Ethernet lineEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4
- Certificate Agency
- cULus, IACS E10, RCM, CE, UKCA, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1523871256, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 6.2338578453
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Counting Frequency
- 200 kHz
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011
- Front Installation Possible
- false
- Optical Interface Present
- false
- Product Or Component Type
- module hight speed counting
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Reset
- automatic reset
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-31 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- Contactor Control Function Block
- false
- Function Block Access Control
- false
- Function Block Automatic Reset
- false
- Function Block Emergency Stop
- false
- Function Block Restart Blockage
- false
- Pep Code
- ENVPEP1904007EN
- Pep Verification Date
- 2019-05-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- to count the pulses generated by a sensor or to process signals from an incremental encoder 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 148.92
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 39 mm
- Discrete I/O Number
- 18
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Function Block 2-hand Switching
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Suitable For Multi-axis Positioning
- false
- Suitable For Single-axis Positioning
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 226.000 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 272.0425
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 185.3
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Circuit Typestandard input, latch input
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Vibration Resistance1 gn 8.4-200 Hz panel3.5 mm 2-8.4 Hz DIN rail1 gn 8.4-200 Hz DIN rail, 3.5 mm 2-8.4 Hz panel
Carbon Footprint Of The Distribution Phase [A4]0.0283846223, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0032256504
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]73 kg CO2 eq., 72.9625833333
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1904007EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1936
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Current Consumption100 mA 5 V DC50 mA 24 V DC
Event ManagementNo eventThresholds < 10 µs
Network TypeDC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM3
Resistance To Conducted Disturbances10 V 0.15...80 MHz EN/IEC 61000-4-4
Resistance To Electrostatic Discharge8 kV in air EN/IEC 61000-4-24 kV on contact EN/IEC 61000-4-2
ServicesHSC simple One shot/ModuloHSC main single phase One shot/Modulo/Event countingHSC main dual phase Modulo/Free-largeperiod meter Edge to Edge, Edge to Opposite
Software VersionEIME v5.8.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint79 kg CO2 eq.
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Frequency Measurementfalse
Function Block Affirm Pushbuttonfalse
Function Block Contactless Working Protection Installationfalse
Function Block Operating Mode Selectionfalse
System Accessoryfalse
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC external supply - 15...20 %)
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Suitable For Multi-axis Controlfalse
Suitable For Single-axis Controllerfalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]3140.325
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]185.3
Water Pollution (M3) Operational Energy Use [B6]3010.7
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation, -20-50 °C vertical installation-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation
- Ip Degree Of Protection
- with protective cover in place, IP20
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 79.380438577
- Environmental Disclosure
- ENVPEP1904007EN
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2019-05-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Relative Humidity10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1904007EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1904007EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- module hight speed counting
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Output Attributes
- Discrete Output Current
- 300 mA fast output Q0...Q7)
- Number Of Output Channels
- 8
- Output Voltage
- 24 V DC transistor output
Discrete Output Logicsource
Output Protection Typeagainst overload and short-circuits
Output Voltage Limits30 V DC
Input Attributes
- Discrete Input Logic
- sink or source
- Number Of Input Channels
- 10
Discrete Input Voltage24 V DC
