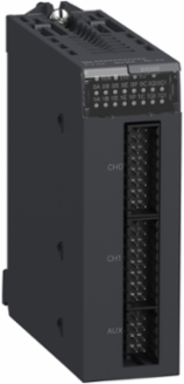

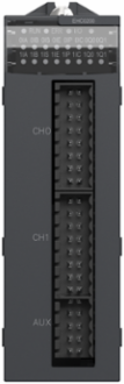

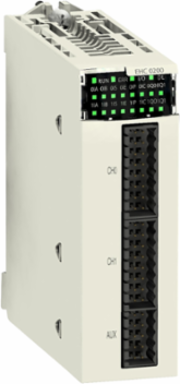

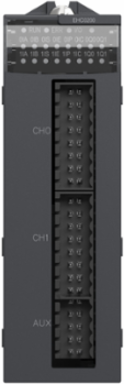

Schneider Electric BMXEHC0200 Modicon M340 High Speed Counter Module, 2 Channels, 24V DC

  • MPN: BMXEHC0200
  • PPN: SCH-BMXEHC0200
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1494.77

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 2 channels, 6 inputs and 2 outputs. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, width modulation, down counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 10-pin connector with for wiring auxiliary input and sensor power supply, 16-pin connector for wiring the sensors of counter 0 and 16-pin connector for wiring the sensors of counter 1. It is an IP20 rated product. It weighs 0.112kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Complementary Attributes

    Maximum Voltage Drop
    <3 V at state 1, <3 V at state 1<3 V at state 1, <3 V at state 1
    Maximum Leakage Current
    0.1 mA at state 0
    Maximum Output Current
    2 A per module0.5 A per output
    Maximum Counting Frequency60000 Hz
    Maximum Load Current1 A per module0.5 A per output

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Counter Functions
    loop (modulo) counting, width modulation, down counting, measure time periods, ratio count, count events, 32-bit counter counting, frequency meter
    Current State 0 Guaranteed
    < 1.5 mA, < 1.5 mA
    Electrical Connection
    1 connector 10 pins for wiring auxiliary input and sensor power supply1 connector 16 pins for wiring the sensors of counter 0, 1 connector 16 pins for wiring the sensors of counter 1
    Voltage State 0 Guaranteed
    < 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.2 kg CO2 eq., 0.2484193939
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    18 kg CO2 eq., 17.8877575758
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2311046EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2438
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Cycle Time
    1 ms
    Module Format
    standard
    Overlap Time
    0.2 ms
    Product Or Component Type
    counter module
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Voltage State 1 Guaranteed
    10...30 V DC
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    127.7208
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Output Short-circuit Protection
    1.5 A integrated
    Package Weight(Lbs)
    140.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Current Consumption200 mA 3.3 V DC bus, 40 mA 24 V DC rack80 mA 24 V DC sensor
    Current State 1 Guaranteed> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)
    Protective Treatmentstandard version, standard version
    Carbon Footprint Of The Distribution Phase [A4]0.0183069091, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0372790303, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]83 kg CO2 eq., 83.2725251397
    Local Publishable Date2026-01-23
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Isolation Voltage1500 V 60 s
    Number Of Channels2
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon M340 automation platform
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint101 kg CO2 eq.
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code9029108000

    Environment Attributes Main

    Directives
    2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    0-60 °C
    Environmental Disclosure
    ENVPEP2311046EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    10-95 % without condensation
    Pep Verification Date
    2023-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint101.4642880488
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    counter module
    Range Of ProductModicon M340 automation platform

    ETIM

    ETIM 8
    EC001422
    ETIM 9EC001422

    Output Attributes

    Discrete Output Logic
    positive or negative configurable
    Number Of Outputs
    2
    Output Voltage
    24 V DC
    Maximum Output Current2 A per module0.5 A per output
    Output Overload Protectionintegrated
    Output Voltage Limits19.2...30 V

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Input Type
    3 auxiliary input, 3 high speed
    Input Current
    2 mA at 11 V
    Input Voltage Limits
    24 V DC
    Input Compatibility19.2-30 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole
    Input Voltage24 V DC type 3
    Number Of Inputs6-6
